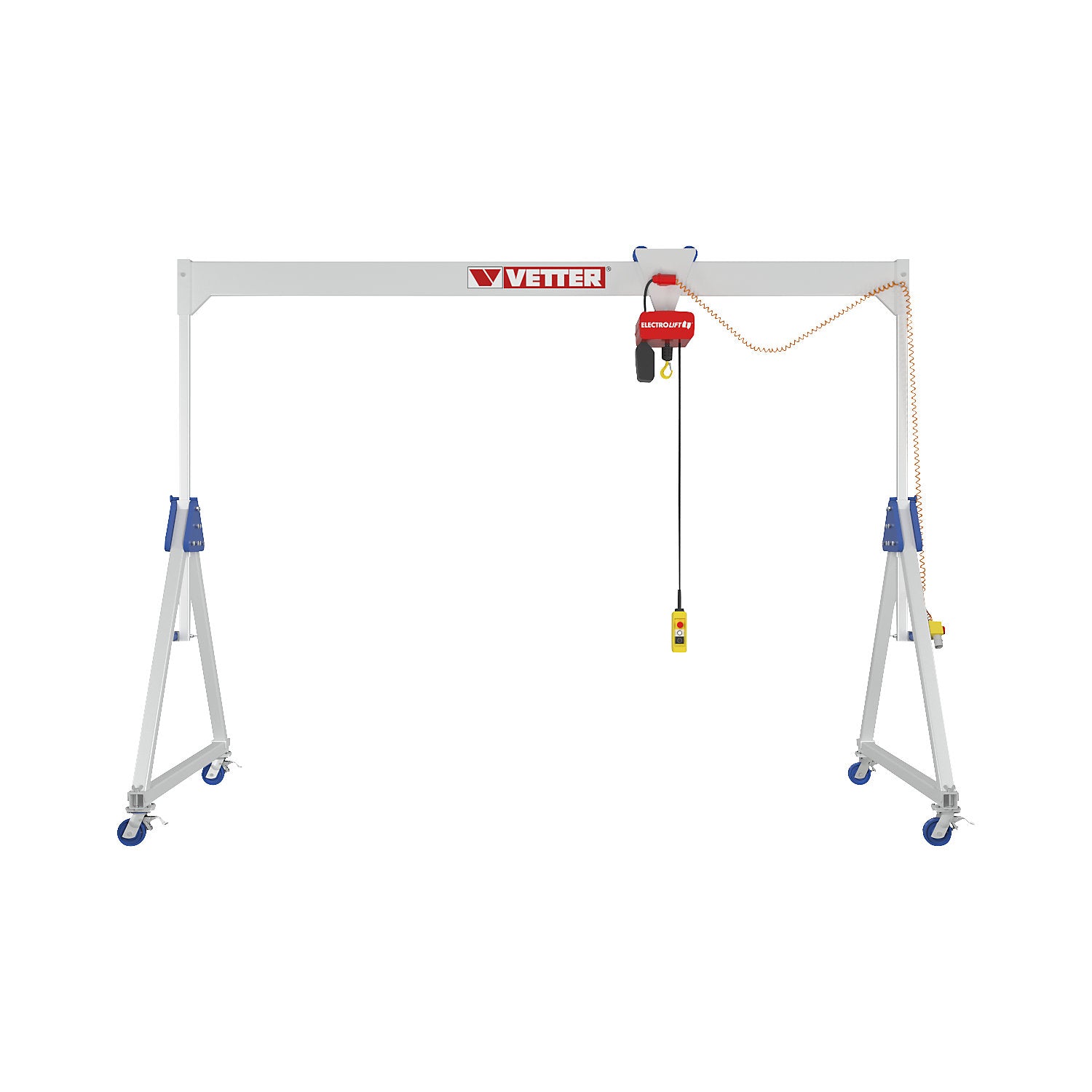

ALU1 aluminium gantry crane, with BA electric chain hoist, max. load 500 kg, suspension height 2500 - 3800 mm.

Estimated delivery: 52 days

ALU1 aluminium gantry crane, with BA electric chain hoist, max. load 500 kg, suspension height 2500 - 3800 mm

• Supplied = flat pack
• Max. load = 500 kg
• Design of mobile gantry crane = crane with electric chain hoist
• Material = aluminium
• Track width = 4400 mm
• Clear width = 4000 mm
• Suspension height from - to = 2500 - 3800 mm
• Overall height from - to = 2880 - 4180 mm
• Side support width = 2320 mm
• Max. lifting height = 3422 mm
• Main lift = 4.5 m/min
• Precise lift = 1.1 m/min
• Operating voltage = 400 V / 50 Hz
• Control voltage = 24 V
• Weight = 218 kg
• Colour = silver
• Product type = mobile gantry cranes
• Customs tariff number = 84261900
• Country of origin = DEU
• Gross weight = 220 kg
• Weight = 218 kg
• Sustainability = CO 2 footprint calculated
• Height adjustable, also mobile when loaded
• Easy plug in assembly, ideal for changing locations
• Low empty weight due to aluminium profile
• This mobile gantry crane is used exactly where you currently need it
• It is quick to set up and disassemble, and can work with heavy loads without problems - this makes it particularly suitable for mobile use
• Assembly is just as easy as using it, and requires no drilling and no tools: all parts are produced with plug connections
• Due to these characteristics, it is especially suitable for assembly purposes
• This model is equipped with an electric chain hoist (incl. suspension bracket)
• Suitable for indoor operation (outdoor equipment upon request)
• Includes electrical system (CEE plug/switch combination, and spiral cable routed up to the hoist)
• The technical specifications for these cranes makes it necessary to manufacture them to order - no right of return.
