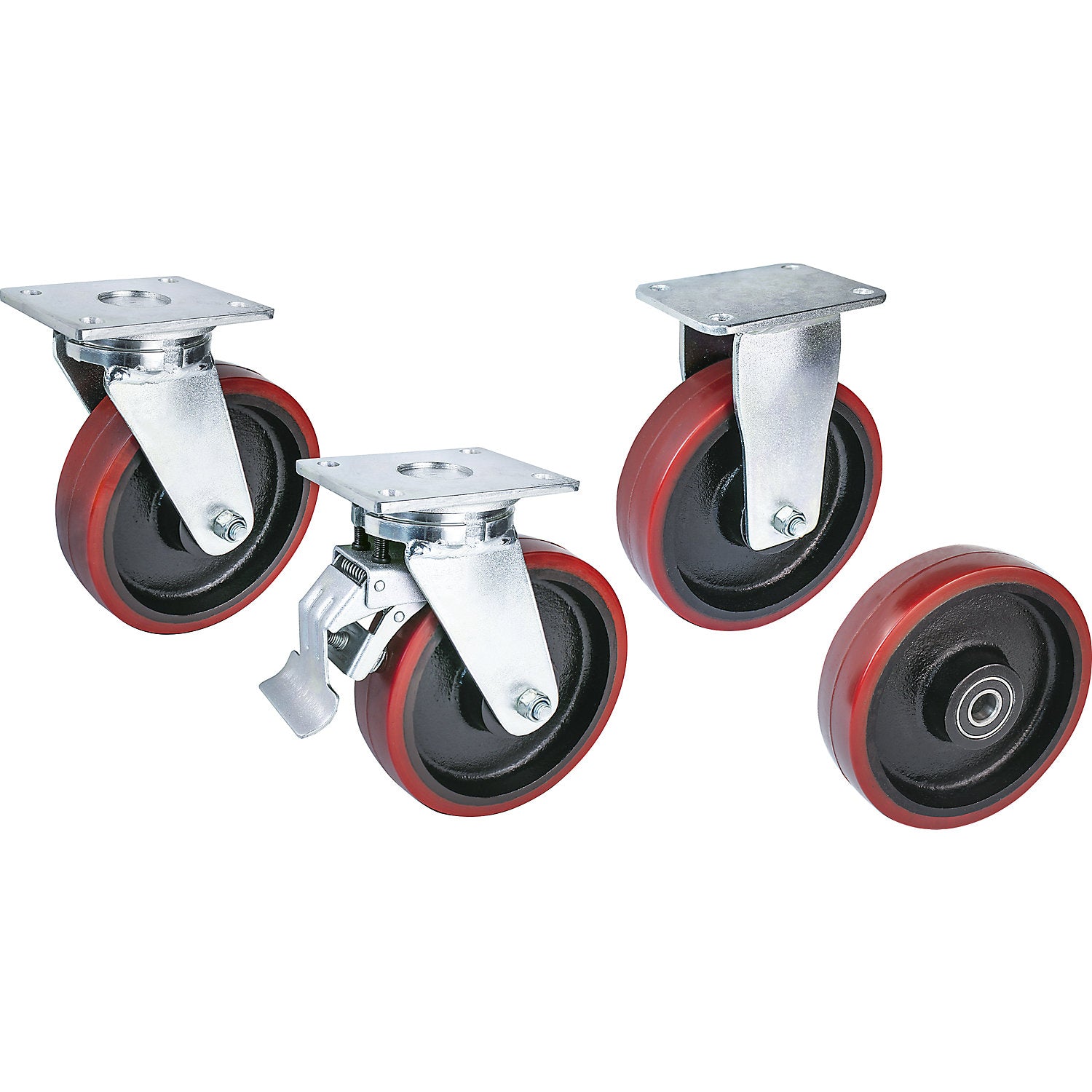

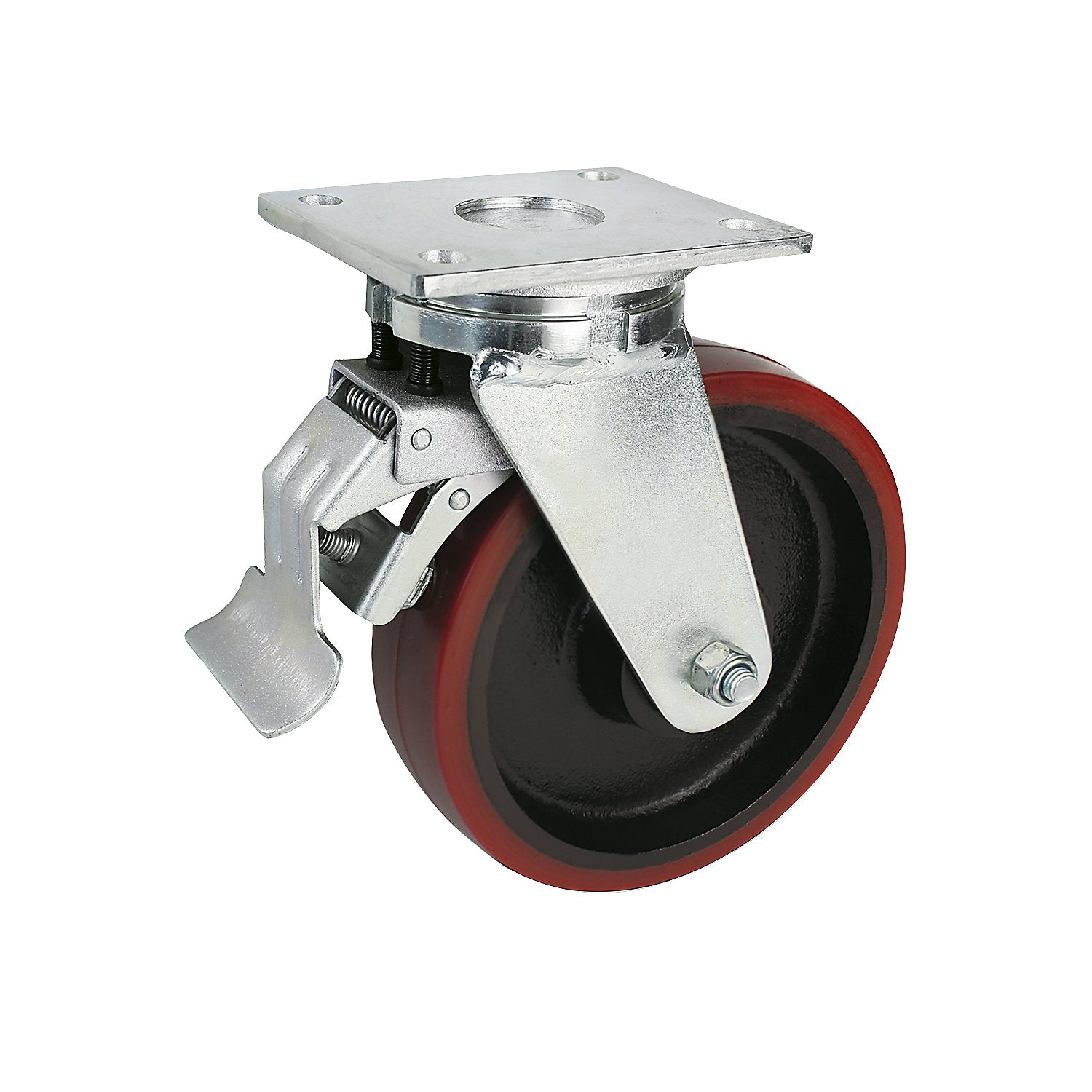

Polyurethane tyre, plate dims. 175 x 140 mm, wheel Ø x width 250 x 75 mm, swivel castor with double stop.

Estimated delivery: 29 days

Polyurethane tyre, plate dims. 175 x 140 mm, wheel Ø x width 250 x 75 mm, swivel castor with double stop

• Supplied = assembled
• Wheel diameter = 250 mm
• Structure = swivel castor with double stop
• Wheel material = polyurethane (PU)
• Material of rim = cast iron
• Type of mounting = with top plate
• Housing material = steel
• Max. load at 4 km/h = 1800 kg
• Wheel width = 75 mm
• Overall height = 314 mm
• Wheel bearing = ball bearing
• Temperature resistance = -20 °C to +85 °C
• Swivel castor offset = 80 mm
• Screw hole diameter = 14.5 mm
• Hub length = 82 mm
• Hub bore = 30 mm
• Model = heavy duty castors
• Fixed castor plate dimensions = 175x140 mm
• Swivel castor plate dimensions = 175x140 mm
• Screw hole spacing = 140x105 mm
• Housing surface = zinc plated
• Shore hardness = 92 A
• Customs tariff number = 73269098
• Country of origin = IND
• Gross weight = 18.2 kg
• Weight = 18.2 kg
• Sustainability = CO 2 footprint calculated
• Hardness 92 Shore A
• Permanently fixed on precision, machine turned cast rims
• Ball bearings with lubrication nipple
• Easy rolling, quiet
• Hardwearing and cut resistant
• Temperature resistant from -20 °C to +85 °C
• Heavy, welded sheet steel housing, zinc plated

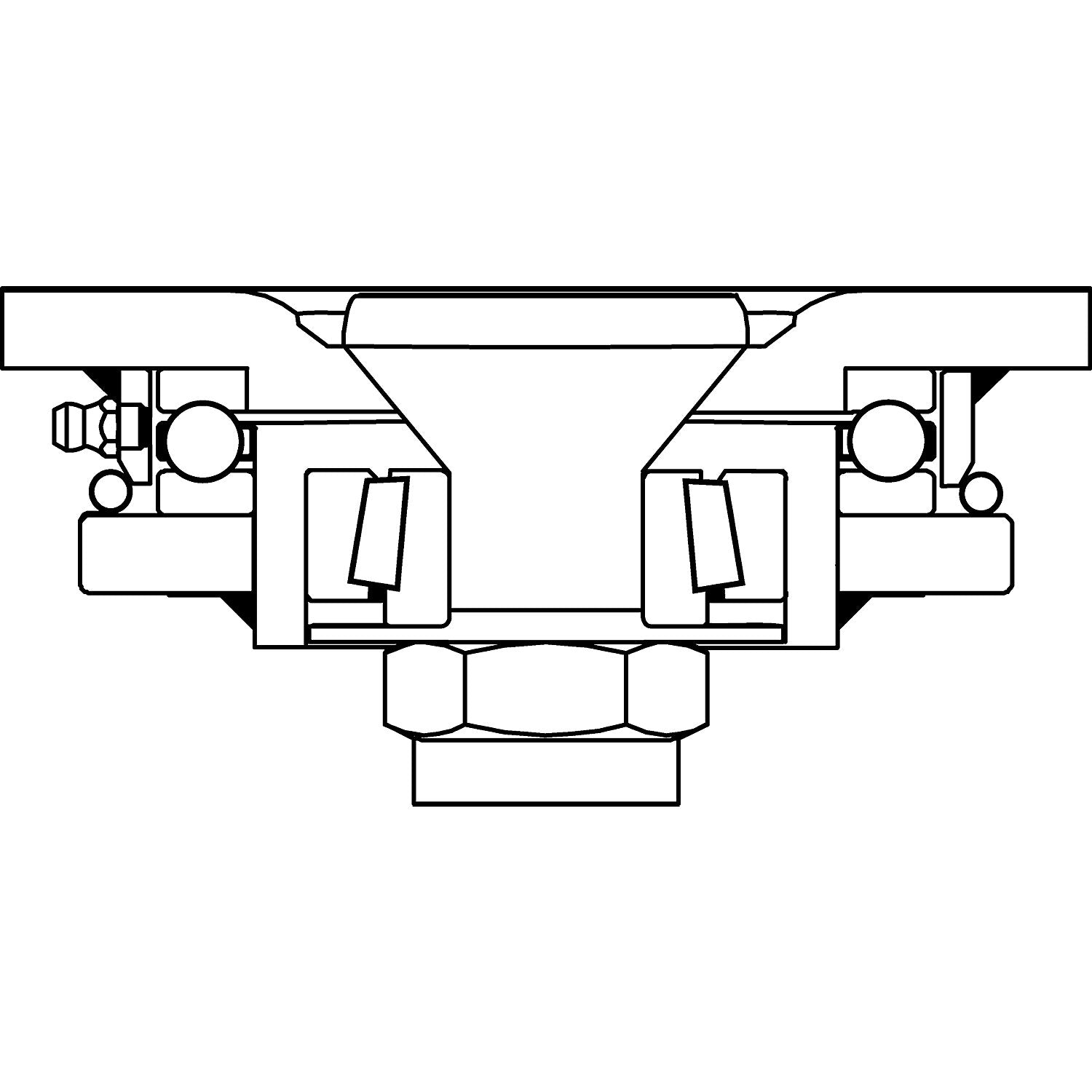

• Swivel castors with sealed fork head and combined deep groove ball bearings and tapered roller bearings, with lubrication nipple
• On request Swivel castors (with and without double stops) with four-way directional stops, can be fitted at a later stage
• This converts swivel castors into fixed castors.
