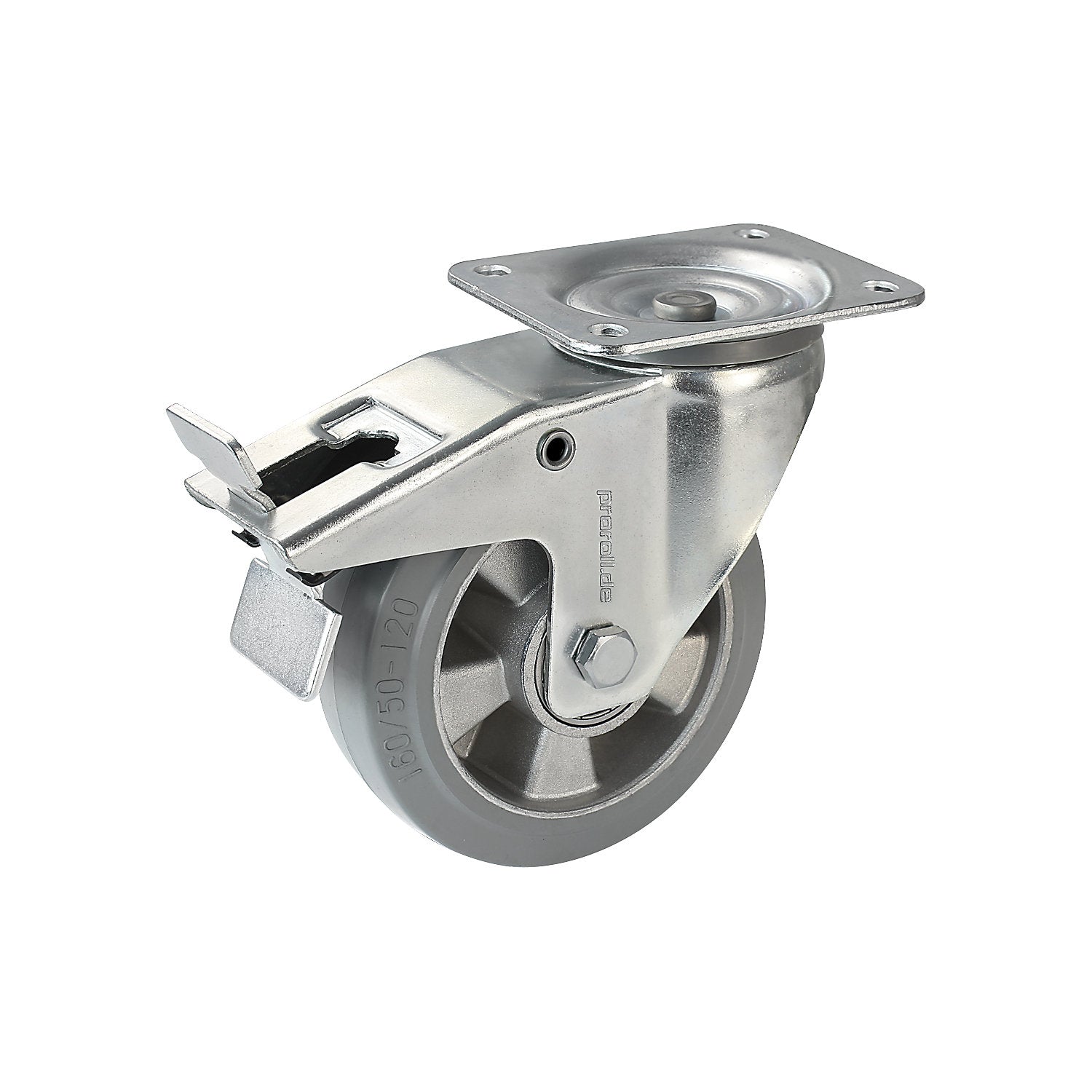

Elastic solid rubber tyre, grey, wheel Ø x width 200 x 50 mm, swivel castor with double stop.

Estimated delivery: 29 days

Elastic solid rubber tyre, grey, wheel Ø x width 200 x 50 mm, swivel castor with double stop

• Supplied = assembled
• Wheel diameter = 200 mm
• Structure = swivel castor with double stop
• Wheel material = rubber - solid rubber - full elastic
• Material of rim = aluminium
• Type of mounting = with top plate
• Housing material = steel
• Max. load at 4 km/h = 400 kg
• Wheel width = 50 mm
• Overall height = 235 mm
• Wheel bearing = precision ball bearing
• Temperature resistance = -20 °C to +70 °C
• Swivel castor offset = 54 mm
• Screw hole diameter = 11 mm
• Hub length = 60 mm
• Hub bore = 20 mm
• Model = transport castors
• Fixed castor plate dimensions = 135x110 mm
• Swivel castor plate dimensions = 135x110 mm
• Screw hole spacing = 105x80 mm
• Housing surface = zinc plated
• Shore hardness = 70 A
• Customs tariff number = 73269098
• Country of origin = CHN
• Gross weight = 3.8 kg
• Weight = 3.8 kg
• Sustainability = CO 2 footprint calculated
• On aluminium rim with non-marking tyres
• Low rolling resistance, quiet running
• Very smooth running, low rolling resistance
• Hardness 70 Shore A
• Temperature resistant from -20 °C to +70 °C
• Vulcanised running surface
• Swivel bearing with double ball race, swivel bearing protection
• On request For swivel castors without double stops
• Retrofittable directional stops 1 x 360°, swivel castor becomes a fixed castor in this way.
