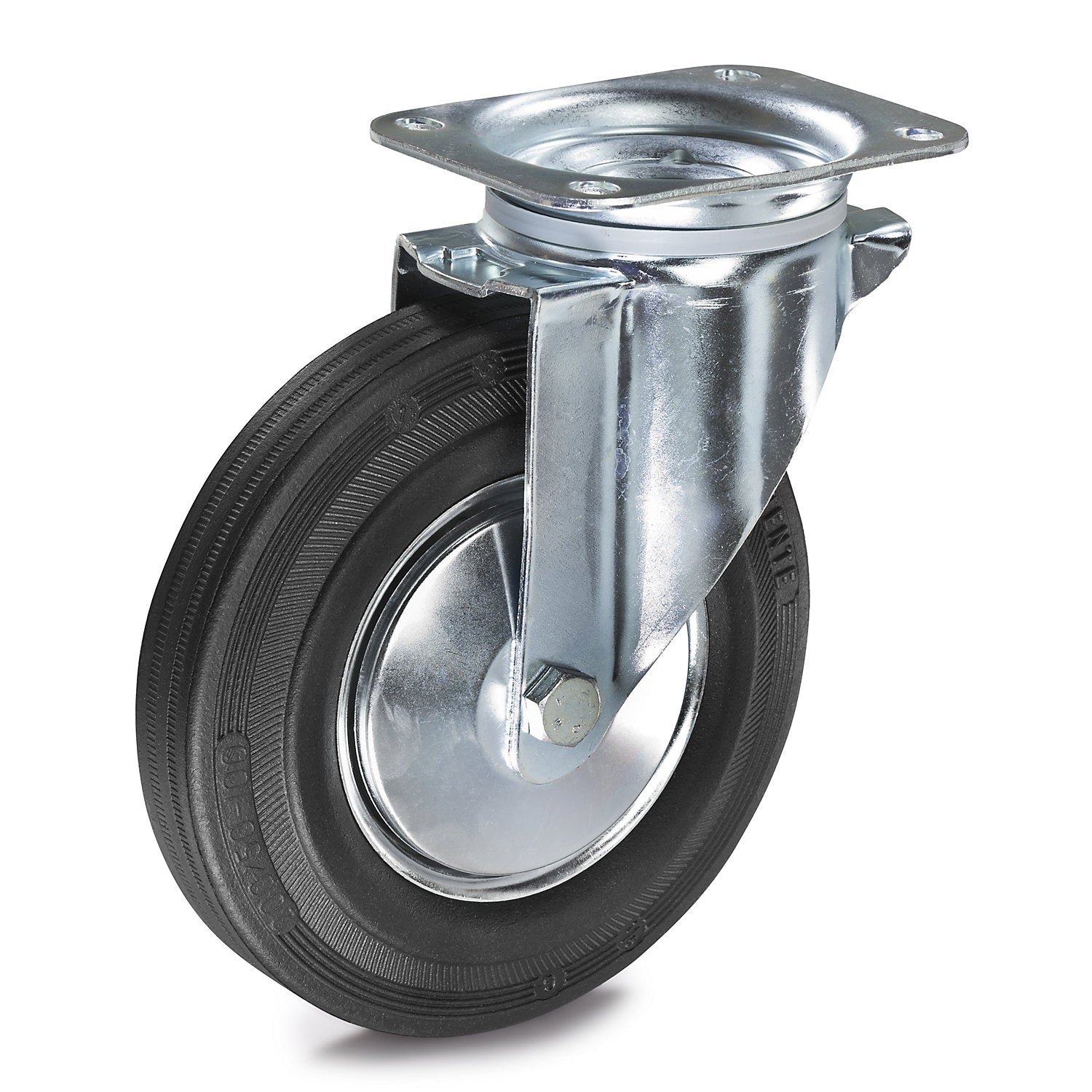

Solid rubber tyre, wheel Ø x width 80 x 25 mm, swivel castor.

Estimated delivery: 29 days

Solid rubber tyre, wheel Ø x width 80 x 25 mm, swivel castor

• Supplied = assembled
• Wheel diameter = 80 mm
• Structure = swivel castor
• Wheel material = rubber - solid rubber
• Material of rim = sheet steel, bright zinc plated
• Type of mounting = with top plate
• Housing material = steel
• Max. load at 4 km/h = 50 kg
• Wheel width = 25 mm
• Overall height = 100 mm
• Wheel bearing = roller bearing
• Temperature resistance = -5 °C to +60 °C
• Swivel castor offset = 36 mm
• Screw hole diameter = 9 mm
• Hub length = 40 mm
• Hub bore = 12 mm
• Model = transport castors
• Fixed castor plate dimensions = 102x87 mm
• Swivel castor plate dimensions = 105x80 mm
• Screw hole spacing = 76 - 80x60 mm
• Housing surface = zinc plated blue passivated
• Shore hardness = 85 A
• Customs tariff number = 73269098
• Country of origin = CHN
• Gross weight = 0.69 kg
• Weight = 0.69 kg
• Sustainability = CO 2 footprint calculated
• On sheet steel rim
• For light to medium duty requirements
• Very quiet on hard floors
• Hardness 85 Shore A
• Temperature resistant from -5 °C to +60 °C
• Swivel bearing with double ball race, swivel bearing protection
• Also available as electrically conductive models on request.
