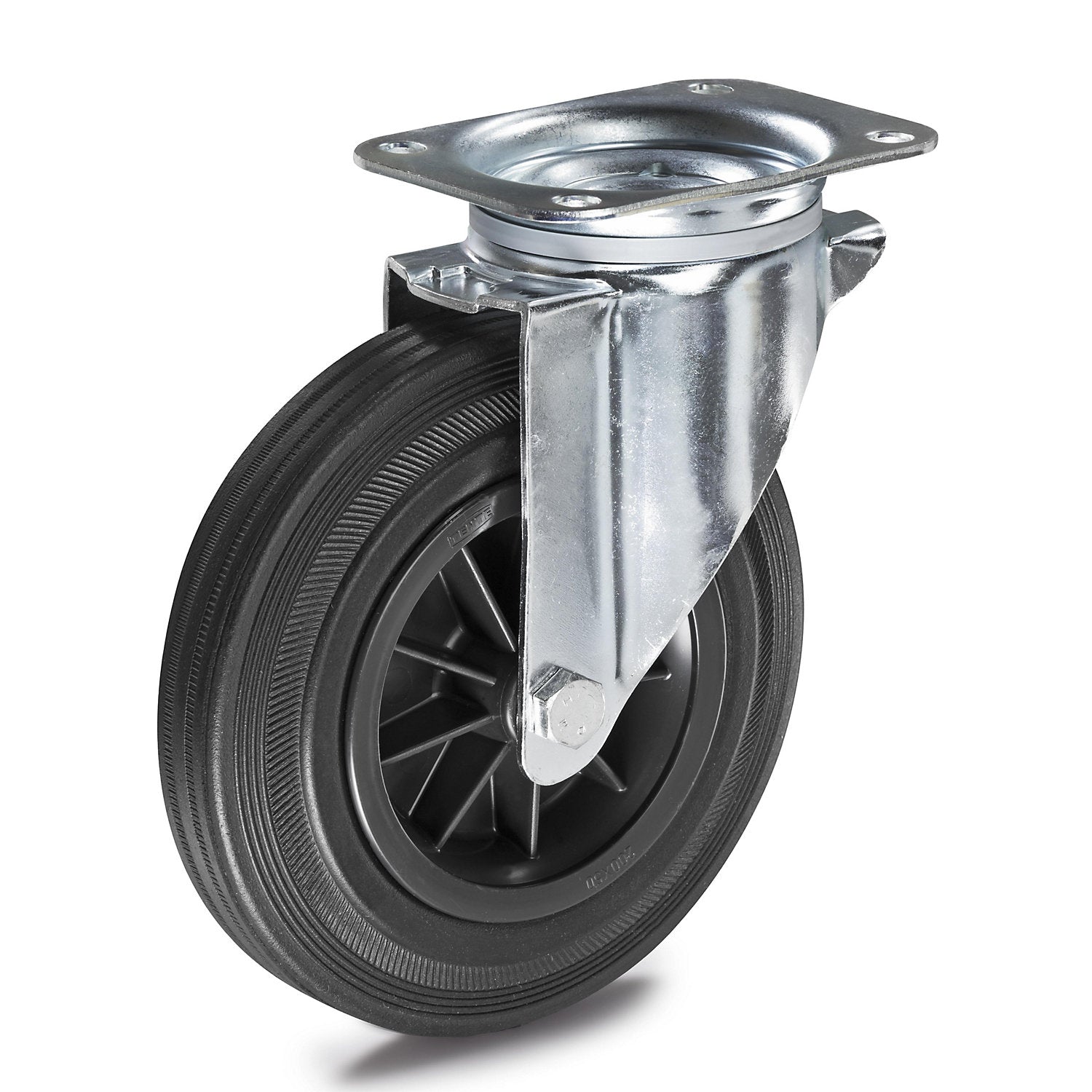

Solid rubber tyre on plastic rims, wheel Ø x width 160 x 40 mm, swivel castor.

Estimated delivery: 29 days

Solid rubber tyre on plastic rims, wheel Ø x width 160 x 40 mm, swivel castor

• Supplied = assembled
• Wheel diameter = 160 mm
• Structure = swivel castor
• Wheel material = rubber - solid rubber
• Material of rim = plastic
• Type of mounting = with top plate
• Housing material = steel
• Max. load at 4 km/h = 135 kg
• Wheel width = 40 mm
• Overall height = 200 mm
• Wheel bearing = roller bearing
• Temperature resistance = -5 °C to +60 °C
• Swivel castor offset = 55 mm
• Screw hole diameter = 11 mm
• Hub length = 58 mm
• Hub bore = 20 mm
• Model = transport castors
• Fixed castor plate dimensions = 137x115 mm
• Swivel castor plate dimensions = 137x105 mm
• Screw hole spacing = 75 - 80x105 mm
• Housing surface = zinc plated blue passivated
• Shore hardness = 85 A
• Customs tariff number = 87169090
• Country of origin = DEU
• Gross weight = 2.06 kg
• Weight = 2.06 kg
• Sustainability = CO 2 footprint calculated
• On plastic rims
• For light to medium duty requirements
• Very quiet on hard floors
• Hardness 85 Shore A
• Temperature resistant from -5 °C to +60 °C
• Swivel bearing with double ball race and swivel bearing protection.
