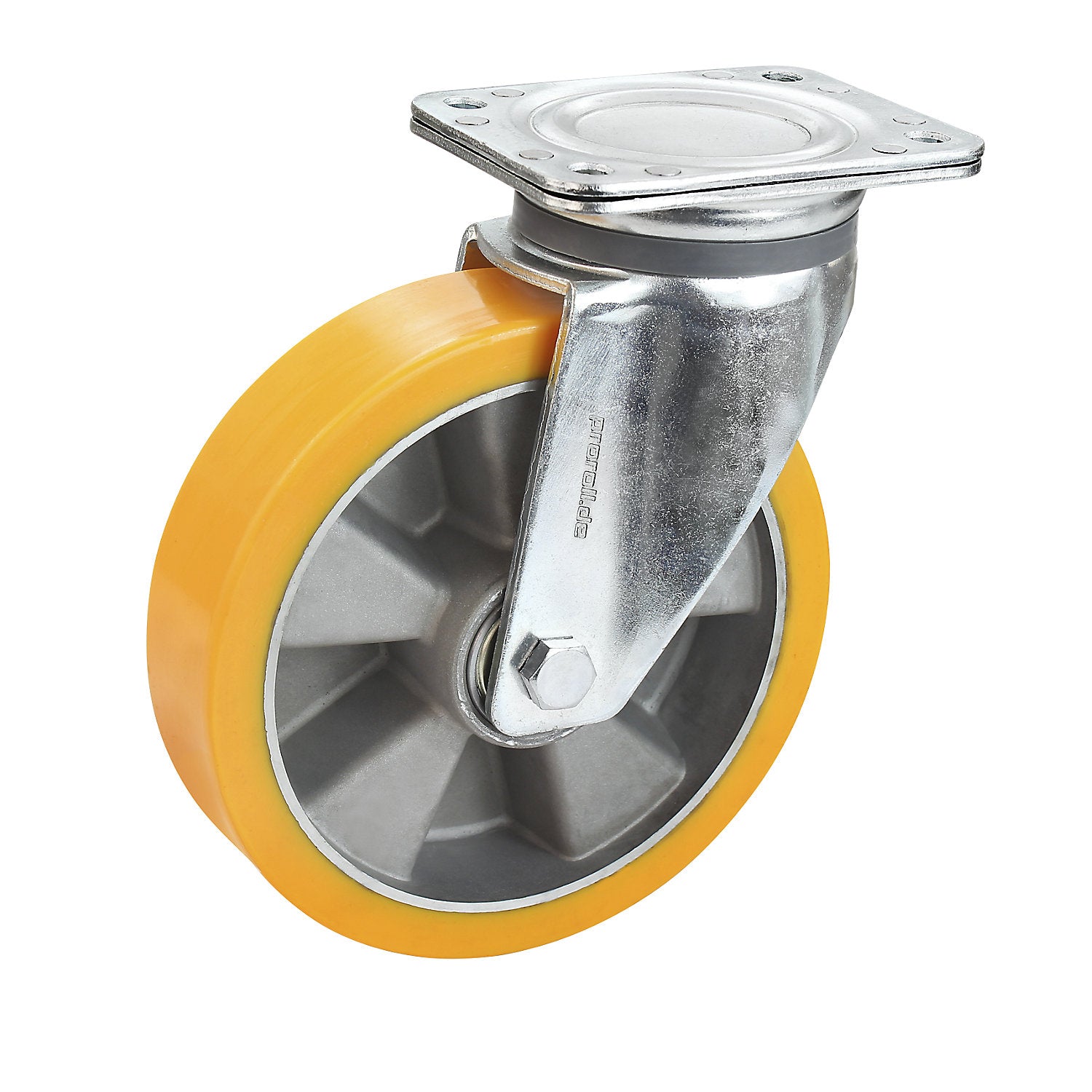

PU tyre on aluminium rim, wheel Ø x width 100 x 40 mm, swivel castor.

Estimated delivery: 29 days

PU tyre on aluminium rim, wheel Ø x width 100 x 40 mm, swivel castor

• Supplied = assembled
• Wheel diameter = 100 mm
• Structure = swivel castor
• Wheel material = polyurethane (PU)
• Material of rim = aluminium
• Type of mounting = with top plate
• Housing material = steel
• Max. load at 4 km/h = 280 kg
• Wheel width = 40 mm
• Overall height = 130 mm
• Wheel bearing = ball bearing
• Temperature resistance = -5 °C to +80 °C
• Swivel castor offset = 40 mm
• Screw hole diameter = 9 mm
• Hub length = 41 mm
• Hub bore = 12 mm
• Fixed castor plate dimensions = 105x80 mm
• Swivel castor plate dimensions = 105x80 mm
• Screw hole spacing = 80x60 mm
• Housing surface = zinc plated
• Shore hardness = 92 A
• Customs tariff number = 73269098
• Country of origin = CHN
• Gross weight = 0.8 kg
• Weight = 0.8 kg
• Sustainability = CO 2 footprint calculated
• On aluminium rims
• Extremely durable for high performance
• Low rolling resistance
• Hardness 92 Shore A
• Temperature resistant from -5 °C to +80 °C
• Reinforced housing

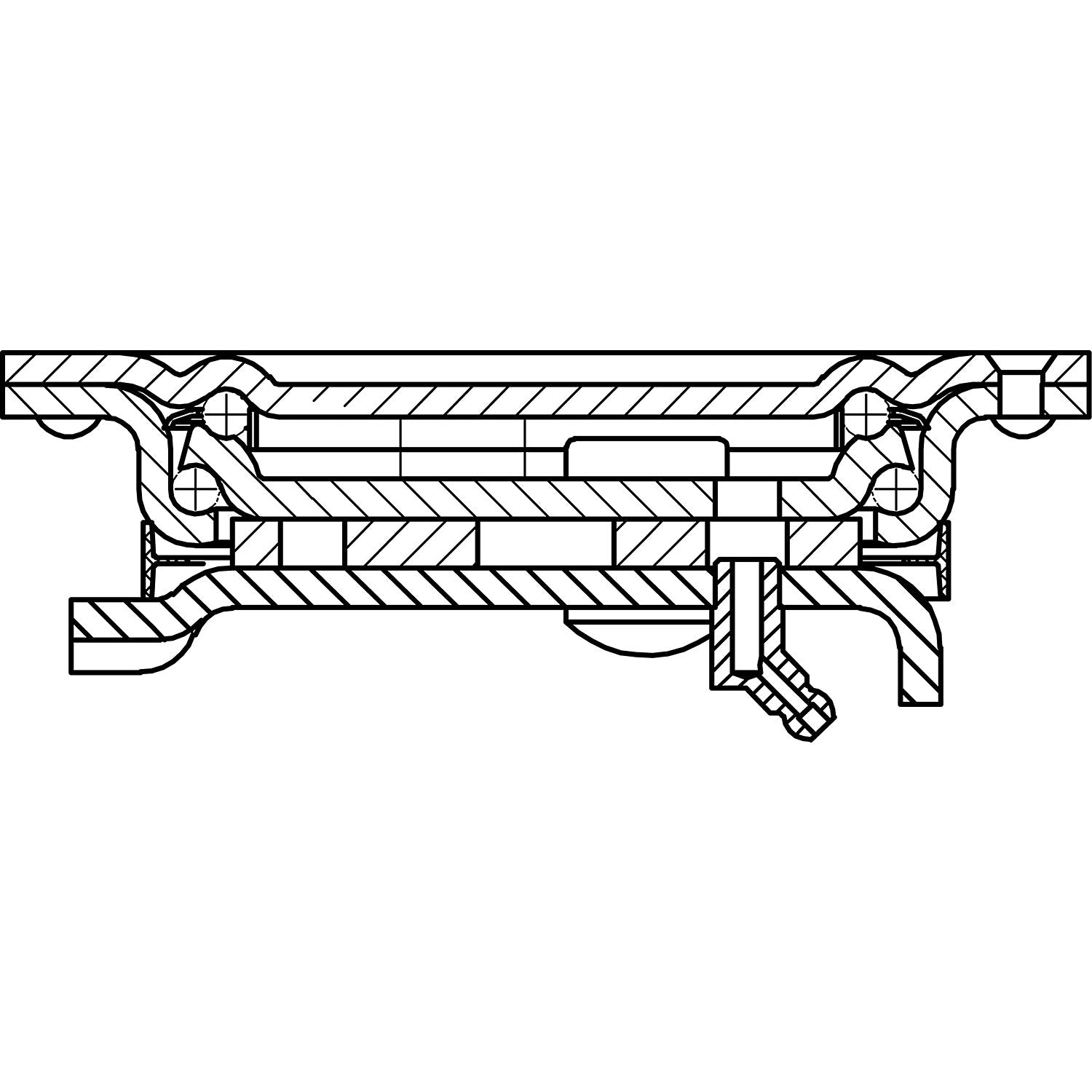

• Swivel bearing without central bolt with hardened, double ball race, swivel bearing protection.
