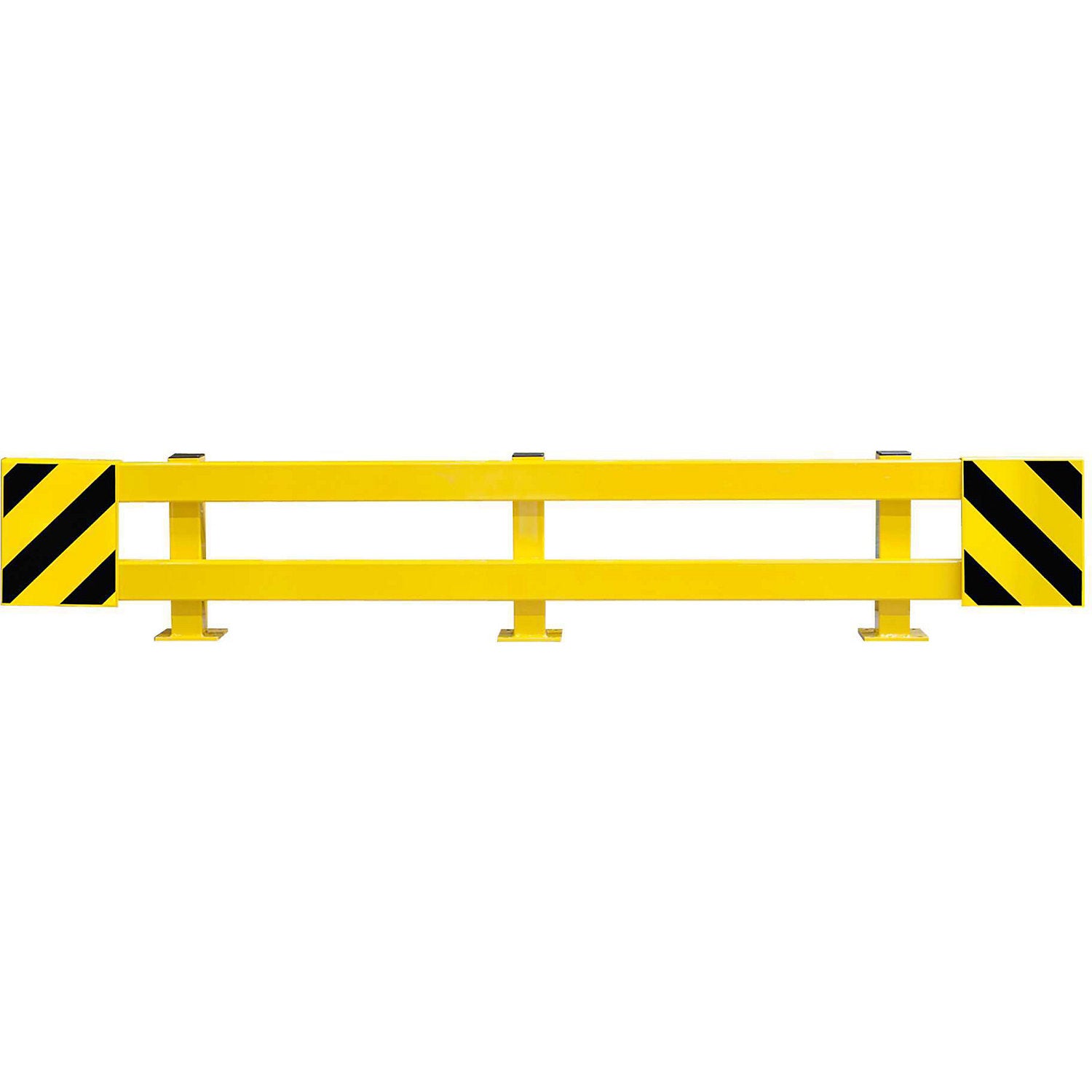

Rack protection guard rail set, for double sided shelving, variable width 2300 - 2700 mm, indoor.

Estimated delivery: 33 days

Rack protection guard rail set, for double sided shelving, variable width 2300 - 2700 mm, indoor

• Supplied = flat pack
• Shape = straight
• Type of mounting = for bolting in place
• Model = for double sided shelf unit
• Length = 2700 mm
• Width = 300 mm
• Height = 465 mm
• Colour = traffic yellow RAL 1023, jet black RAL 9005
• Material = steel
• Finish = plastic coated
• Panel thickness = 3 mm
• Place of use = indoor use
• Retracted length = 2300 mm
• Height above ground = 465 mm
• Product type = collision protection
• Customs tariff number = 73089098
• Country of origin = DEU
• Gross weight = 67 kg
• Weight = 56 kg
• Sustainability = CO 2 footprint calculated
• For indoor and outdoor use
• Optimum protection for shelving units and high racking against collision damage from stackers and vehicular traffic
• Yellow/black markings for increased visibility
• Adjustable to fit all standard shelf unit widths
• Manufactured in accordance with DIN EN 1461, EN 1090-2 and ISO/TR 15608

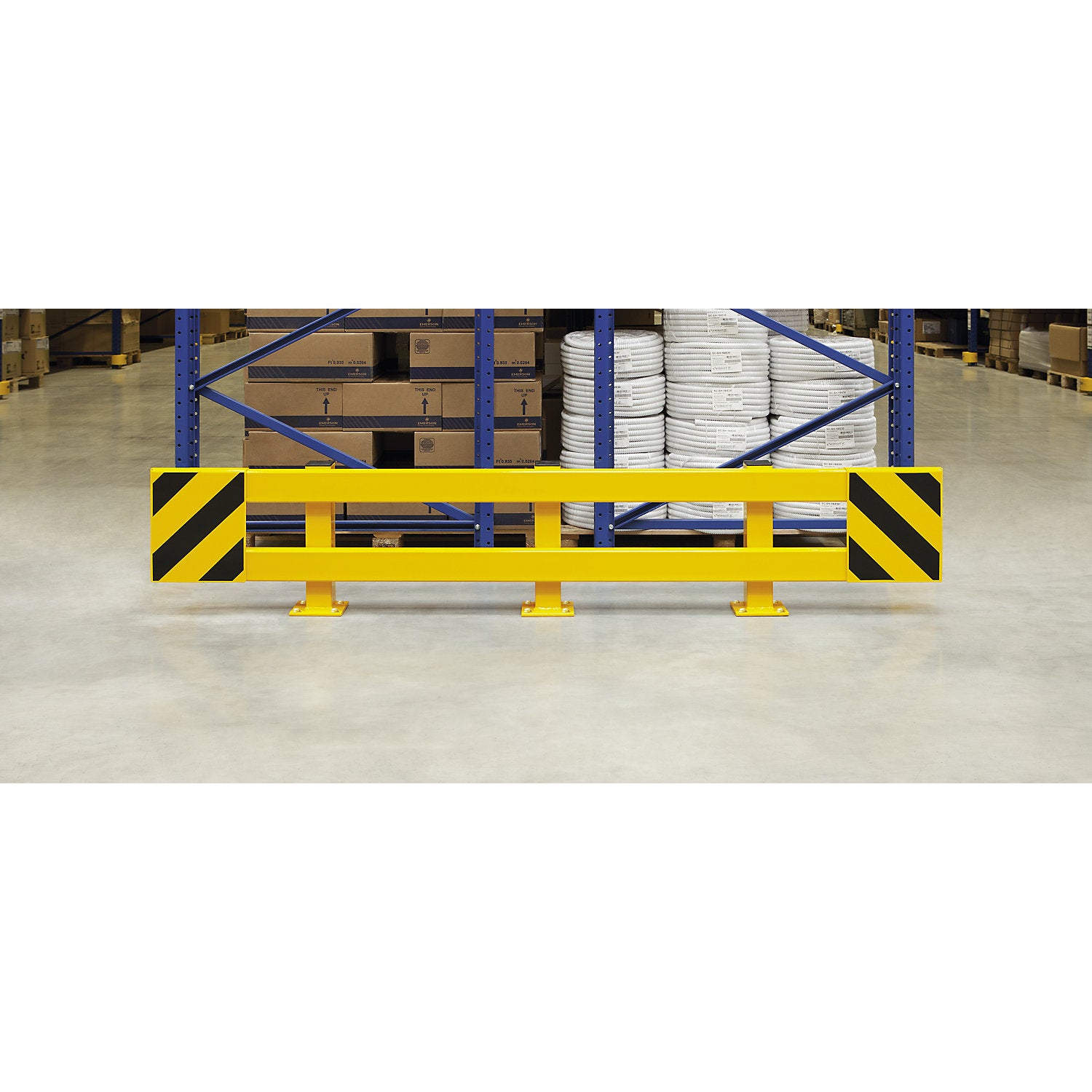

• The rack guard rail set B was specially developed to protect racks from frontal impact damage caused by forklift and manoeuvring traffic and is ideal for use in heavily frequented warehouse zones
• The impact protection angles are shaped in such a way that two steel guard rails with a C-profile can be slid in from the side
• The 300 mm wide protection angles allow the rails to be moved by up to 200 mm per protection angle
• This means each guard rail set can be individually adjusted in width by up to 400 mm
• One guard rail set B consists of two impact protection angles (500 x 300 x 190 mm, 4 mm material thickness), two guard rails (100 x 40 x 3 mm) and four clamping pieces
• For indoor use Plastic-coated in yellow-black
• For outdoor use Hot-dip galvanised and plastic-coated in yellow-black
• Screws and dowels for floor mounting are not included in the scope of delivery
• Material thickness: 3 mm beam and 4 mm angle
• Total height 465 mm
• Variable width 2300 - 2700 mm - 3 posts to bolt in place - 2 rails 2300 mm (C-profile) - 2 warning plates Easy assembly Bolt posts in place, then bolt the rails (C-profile) to the posts using the supplied bolts
• Secure warning plates (300 x 300 mm) in the desired position with clamping jaws.
