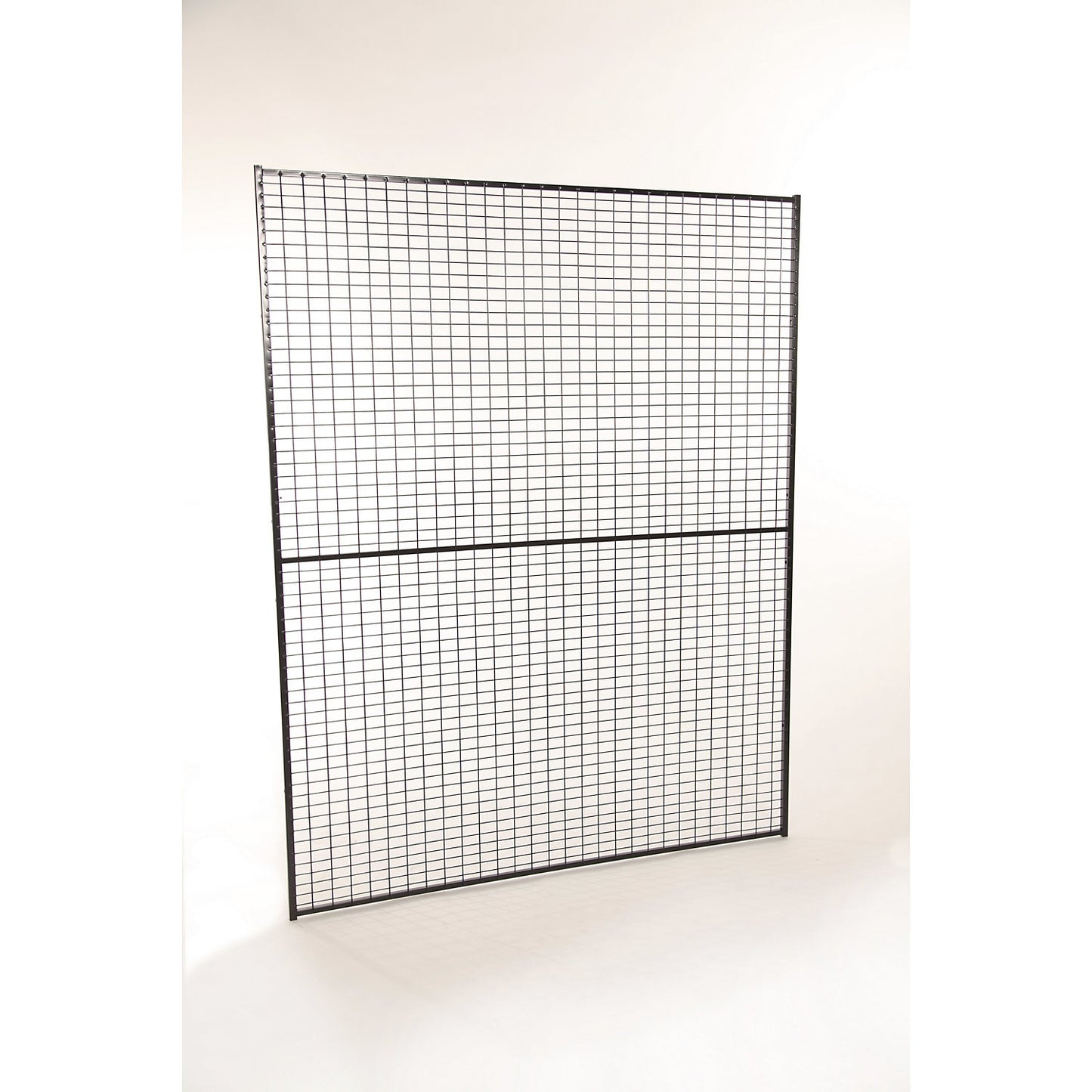

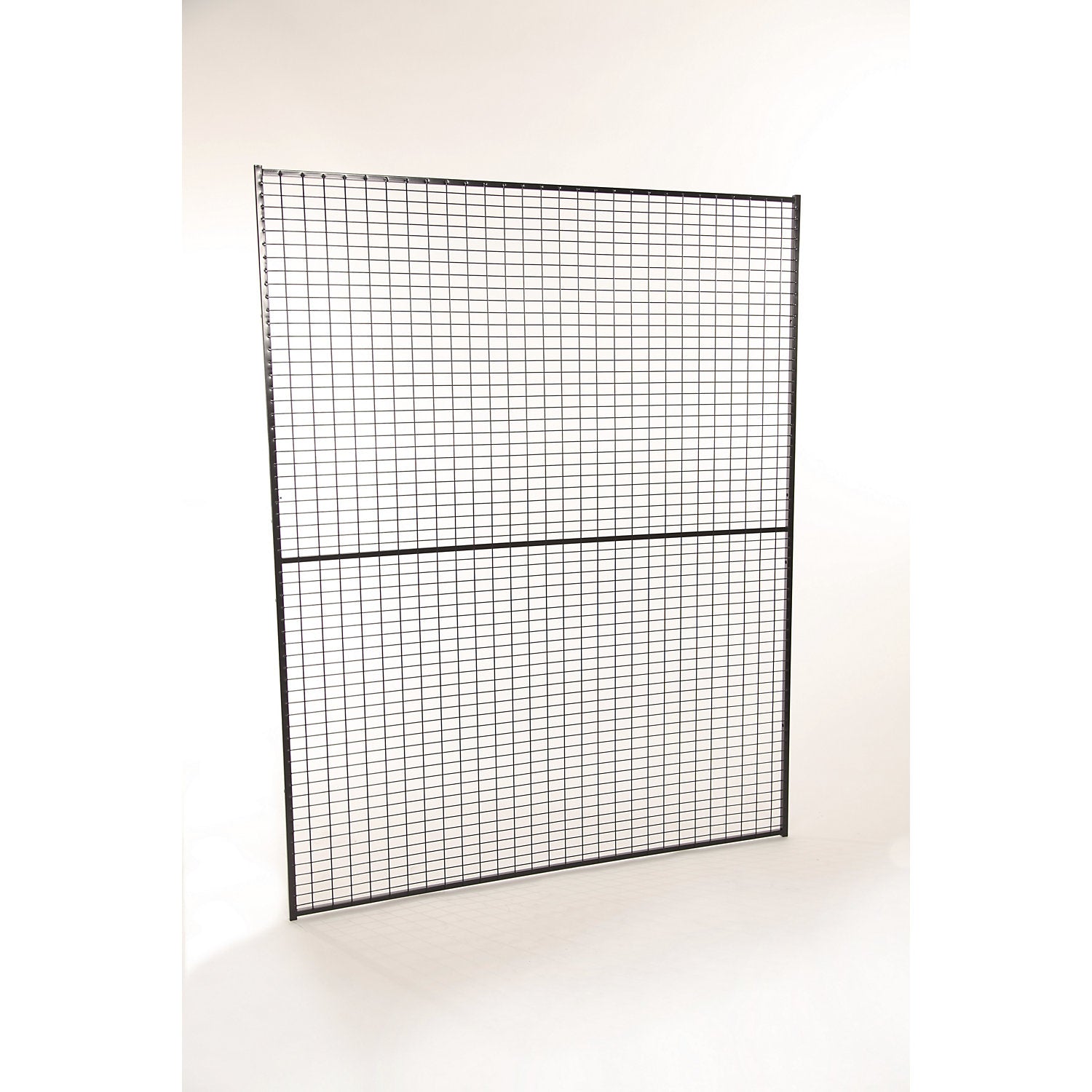

X-GUARD LITE machine protective fencing, wall section, height 1900 mm, width 1500 mm.

Estimated delivery: 51 days

X-GUARD LITE machine protective fencing, wall section, height 1900 mm, width 1500 mm

• Supplied = assembled
• Height = 1900 mm
• Width = 1500 mm
• Colour = graphite black RAL 9011
• Mesh size = 30x50 mm
• Finish = powder coated
• Frame profile = 19x19 mm
• Material = steel, wire mesh
• Stiffening profile = 15x15 mm
• Thickness of wire = 3.0 / 2.5 mm
• Product type = machine protective fencing made of steel
• Customs tariff number = 73143900
• Country of origin = SWE
• Gross weight = 10.8 kg
• Weight = 10.5 kg
• Sustainability = CO 2 footprint calculated
• Quick and easy assembly
• Fulfils machine directive 2006/42/EC
• Regulation compliant mesh size of 30 x 50 mm
• Versatile, can be expanded at any time
• X-Guard Lite is flexible protective equipment that satisfies the requirements specified in the Machinery Directive
• Compliance with Machinery Directive 2006/42/EC has been mandatory since 29 December 2009
• The X-Guard Lite protective fence system is the basic version of X-Guard Classic
• All X-Guard Classic door elements can be used with X-Guard Lite
• The wall element is powder coated in graphite black RAL 9011
• The wire mesh is welded to a solid, rectangular tubular frame with the following dimensions: vertical tubing 19 x 19 mm, horizontal tubing 15 x 15 mm, mesh size 30 x 50 mm, wire thickness 3.0/2.5 mm
• Floor clearance 100 mm

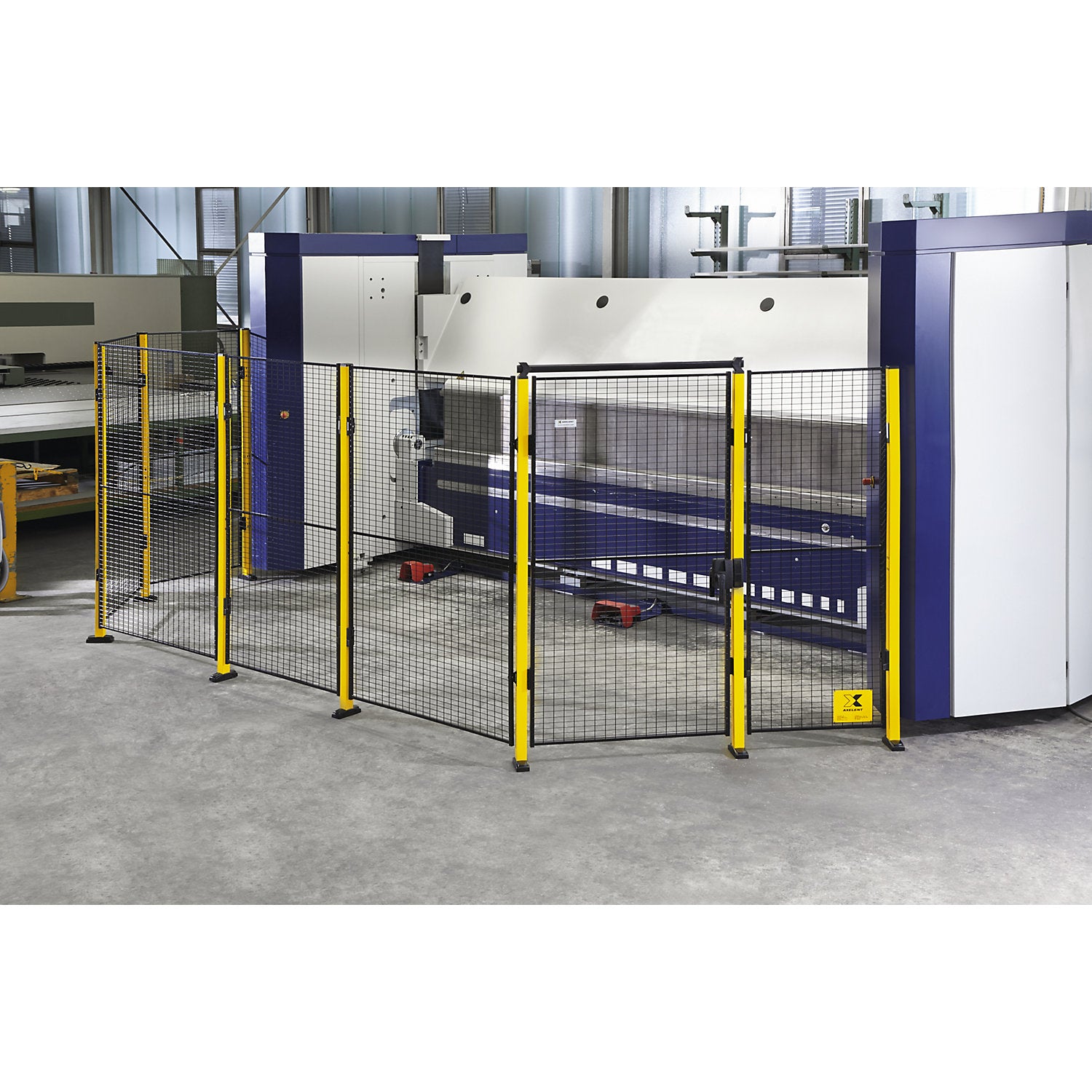

• The protective fencing system for machines, systems, warehouse and logistics - 200 mm safety clearance from source of danger
• Custom models tailored to your requirements available on request.
