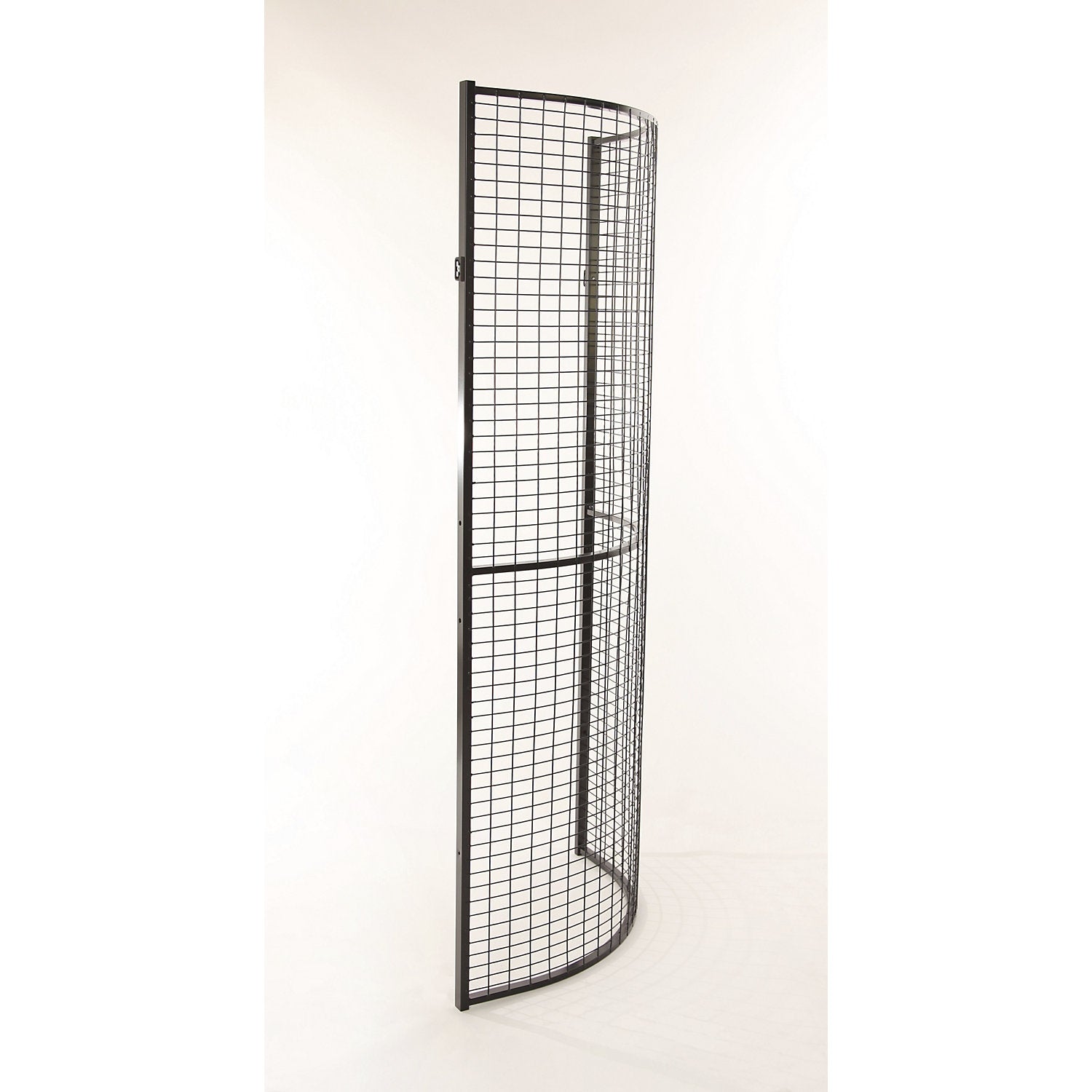

CONTOUR 90° corner element, for X-GUARD CLASSIC machine protective fencing, height 2200 mm.

Estimated delivery: 58 days

CONTOUR 90° corner element, for X-GUARD CLASSIC machine protective fencing, height 2200 mm

• Supplied = assembled
• Height = 2200 mm
• Width = 600 mm
• Colour = graphite black RAL 9011
• Mesh size = 30x50 mm
• Finish = powder coated
• Frame profile = 20x30 mm
• Material = steel, wire mesh
• Stiffening profile = 25x15 mm
• Thickness of wire = 3.0 / 2.5 mm
• Product type = machine protective fencing made of steel
• Customs tariff number = 73143900
• Country of origin = SWE
• Gross weight = 15.3 kg
• Weight = 15 kg
• Space-saving 90° corner solution with a rounded contour
• Enables easy navigation around the protective fencing system
• Robust steel structure with welded wire mesh
• Powder coating in graphite black RAL 9011
• Available in two heights: 1900 mm and 2200 mm
• CONTOUR 90° corner panel - space-saving corner solution for machine protection The CONTOUR 90° corner panel complements the X-GUARD CLASSIC machine protective fencing with an elegant, space-saving corner design
• Thanks to its rounded contour, the element enables easy navigation around protected machine areas and supports a clear layout of production and working zones
• The welded wire mesh is mounted on a sturdy rectangular tubular frame
• With a mesh size of 30 x 50 mm and a wire thickness of 3.0 or 2.5 mm, the corner panel provides a solid partition within the X-GUARD CLASSIC system
• The structure is made of steel and is powder coated in graphite black RAL 9011
• As a result, the protective element blends discreetly into industrial environments and is designed for regular use
• The 90° element features external dimensions of 600 x 600 mm and a radius of 500 mm
• It is available in heights of 1900 mm and 2200 mm, allowing it to be selected to match the respective protective fencing installation
• The mounting brackets are already integrated or included in the scope of delivery of the system
• Delivery is made pre-assembled, reducing on-site installation time and effort

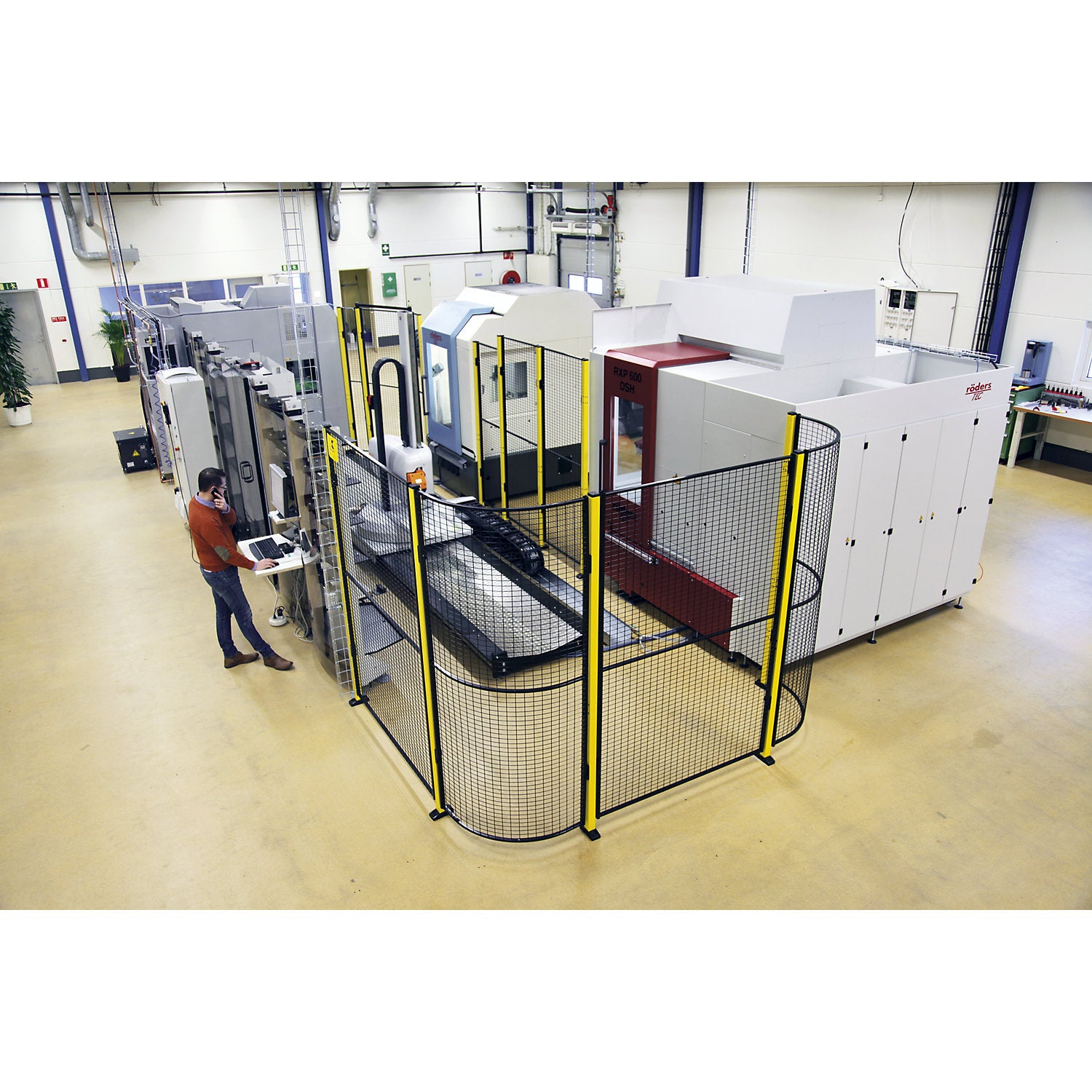

• The CONTOUR 90° corner panel is ideal for machine enclosures, manufacturing areas, assembly workstations and automated production facilities
• It enables flexible, space-conscious planning of machine protective fencing and supports a clear separation between the machine area and the working environment
• Vertical tube 20 x 30 mm Horizontal tube 25 x 15 mm Mesh size 30 x 50 mm Wire thickness 3.0 / 2.5 mm External dimensions 600 x 600 mm Radius 500 mm Angle 90°
