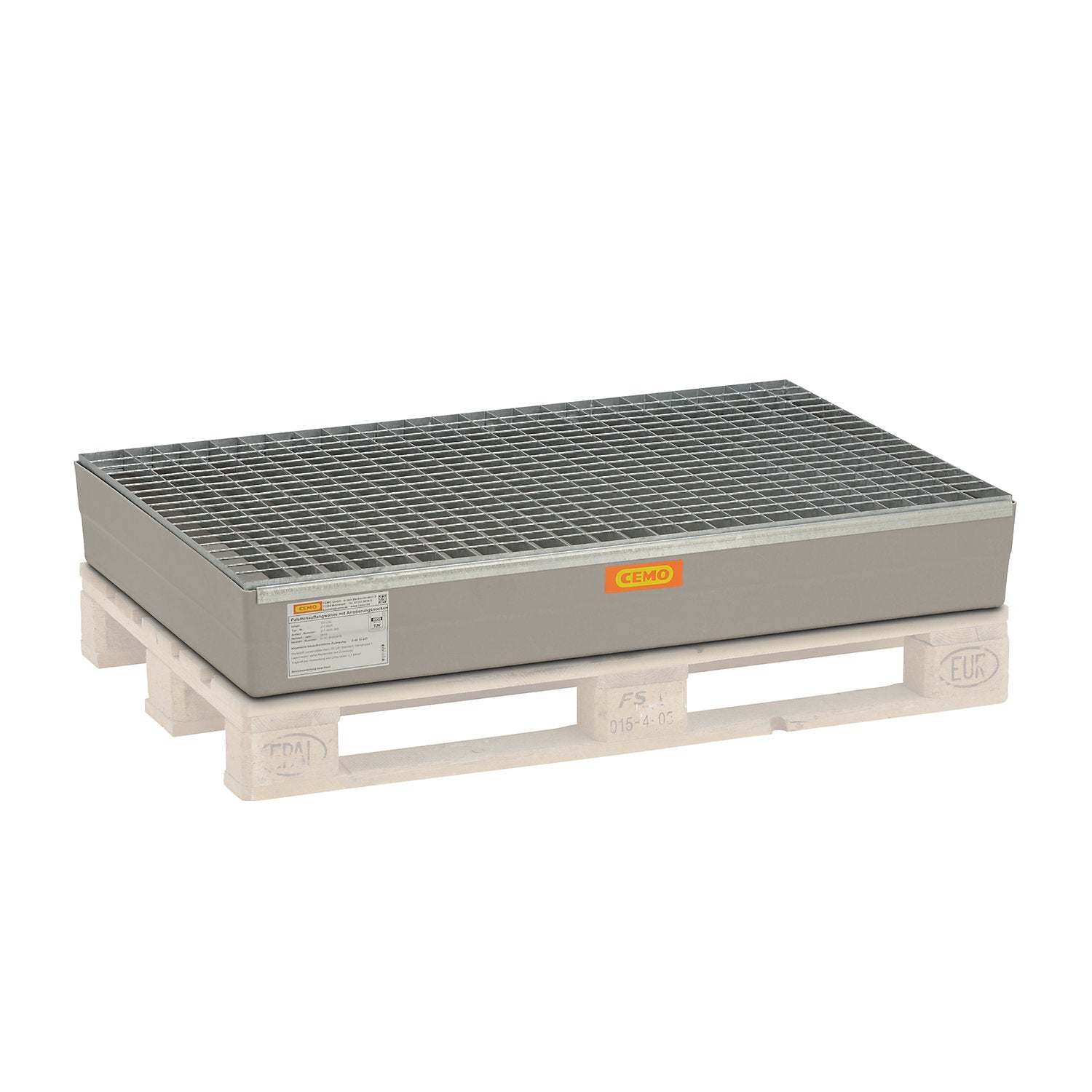

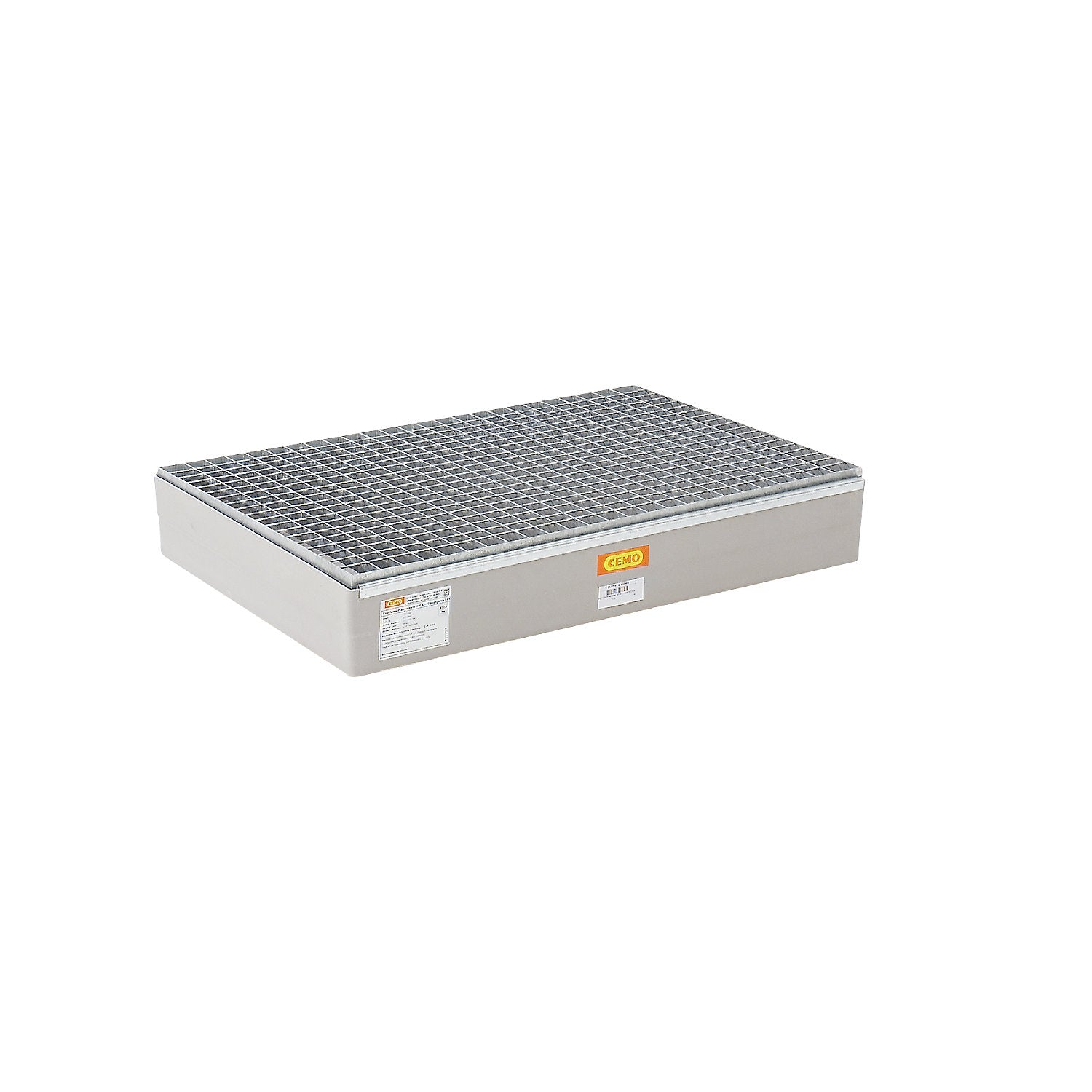

GRP pallet sump tray, with certification, with locking cams, with steel grate.

Estimated delivery: 36 days

GRP pallet sump tray, with certification, with locking cams, with steel grate

• Supplied = assembled
• Type of grate = with zinc plated grate
• Sump capacity = 150 l
• Drum capacity = 6x60 l, 2x120 l
• Length = 1200 mm
• Width = 800 mm
• Height = 208 mm
• Colour = grey, zinc plated
• Pallet capacity = 1 item (800x1200 mm)
• Material = glass fibre reinforced plastic
• Design of sump tray = with stop lugs
• Max. load = 250 kg
• Test symbol = with general certification from the DIBt (German Institute for Construction Technology) Berlin
• For media = water hazardous dangerous goods, chemicals, acids and alkalis, oils
• Hazard class = for water hazardous liquids in GHS categories 1 - 4
• Customs tariff number = 94032080
• Country of origin = DEU
• Gross weight = 27.2 kg
• Weight = 26.5 kg
• Sustainability = CO 2 footprint calculated
• Highly resistant to oils, chemicals (acids and alkaline solutions), emulsions and cleaning agents with pH level up to 8

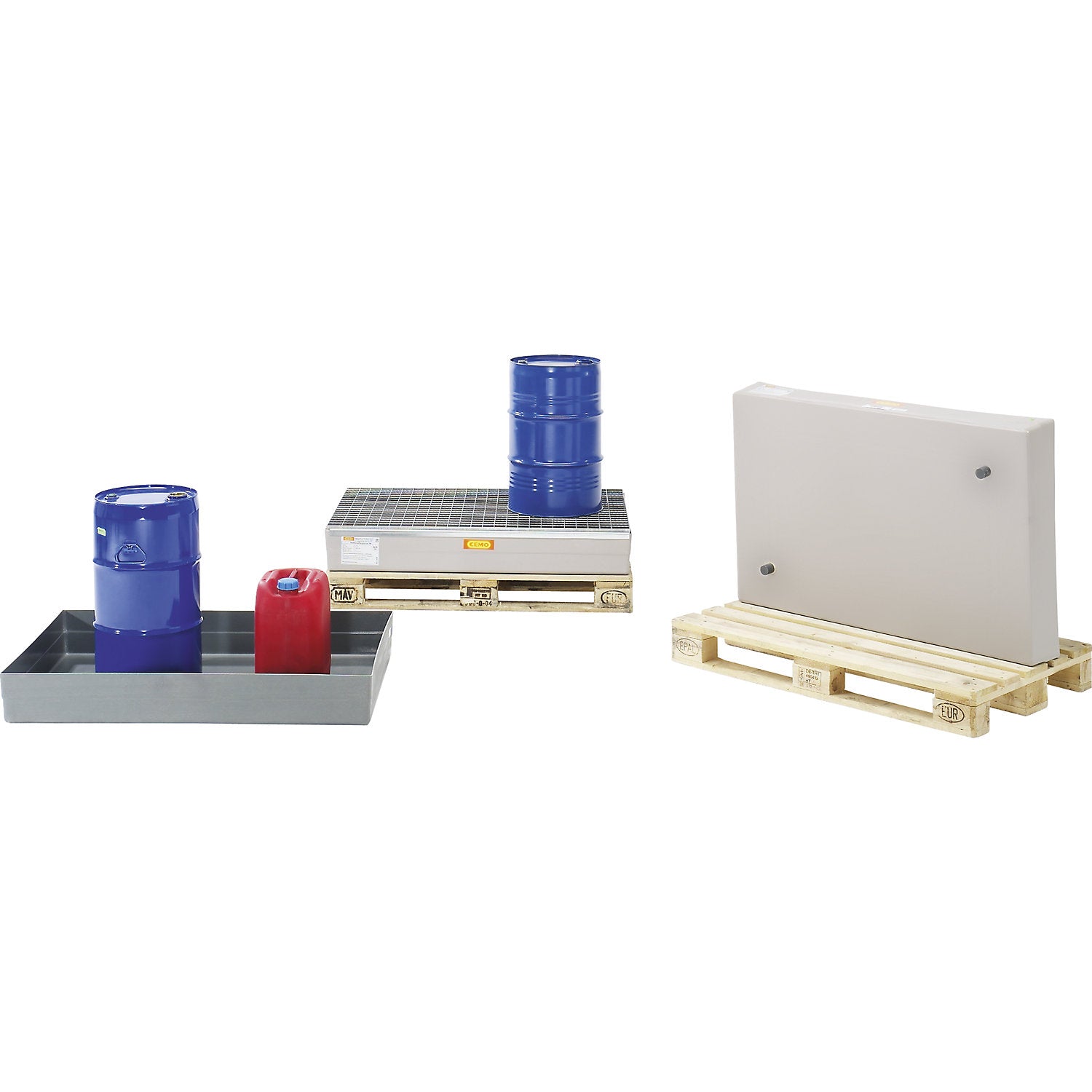

• Suitable for Euro pallets - for small containers and 60/120 l drums
• Made of glass fibre reinforced plastic - corrosion resistant
• Low overall height for easy drum handling
• National technical approval Z-40.12-227 of the DIBt, Berlin
• The GRP pallet sump tray, with approval, provides reliable protection during the storage and transport of hazardous liquids
• The corrosion-resistant shallow tray fits onto Euro pallets and is suitable for small containers as well as 60- and 120-litre drums
• Manufactured from glass-fibre reinforced plastic, the sump tray is highly resistant to oils, acids, alkalis, emulsions and cleaning agents up to a pH value of 8
• As a result, the shallow tray remains resilient even with regular contact with different liquids
• The material is corrosion-resistant and suitable for use in storage, production and workshop areas
• The low overall height facilitates the loading and removal of drums
• At the same time, the sump tray can be placed securely onto a Euro pallet
• This creates a stable unit for storage in pallet racking and for internal transport
• Spilled or leaking liquids are reliably retained
• This reduces the risk of ground contamination and facilitates monitoring of the storage area
• The GRP pallet sump tray is suitable for the storage of water-hazardous liquids of GHS categories 1 to 4
• In addition, it can be used for flammable liquids with a flash point above 55 °C
• The general technical approval Z-40.12-227 from the DIBt, Berlin, supports compliant use
• The shallow tray is suitable for companies where liquid containers are provided on Euro pallets in a space-saving, safe and transportable manner
• Areas of application include hazardous material stores, pallet racking, production facilities, workshops and logistics areas.
