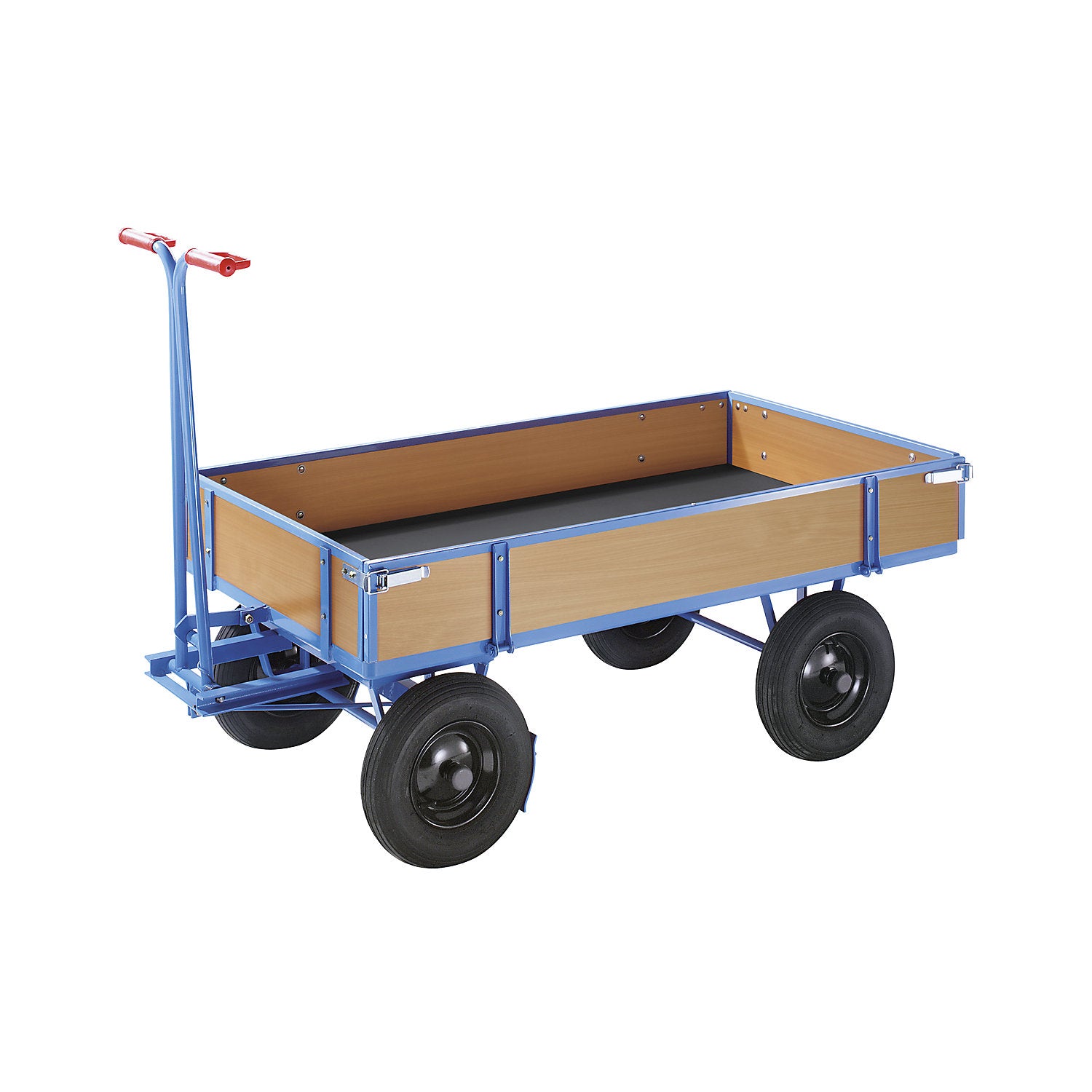

Turntable truck, max. load 500 kg, with 4 side panels, platform 1010 x 660 mm, pneumatic tyres.

Estimated delivery: 31 days

Turntable truck, max. load 500 kg, with 4 side panels, platform 1010 x 660 mm, pneumatic tyres

• Supplied = assembled
• Frame material = steel, powder coated
• Colour = light blue RAL 5012
• Model = with 4 side panels
• Width = 660 mm
• Height = 350 mm
• Loading height = 350 mm
• Platform length = 1010 mm
• Platform width = 660 mm
• Platform material = MDF with coated surface
• Max. load = 500 kg
• Railing height = 200 mm
• Wheel type = pneumatic tyres
• Wheel diameter = 260 mm
• Wheel bearing = roller bearing
• Wheel width = 85 mm
• Steering = turntable steering with ball bearing race
• Product type = turntable trucks
• Customs tariff number = 87168000
• Country of origin = DEU
• Gross weight = 73.65 kg
• Weight = 73 kg
• Sustainability = CO 2 footprint calculated
• With four side panels
• Turntable steering with ball bearing race
• Scratch and impact resistant surface
• Wheels with roller bearings
• Large wheels for low rolling resistance
• Sturdy welded steel construction
• Powder coated as standard in light blue RAL 5012
• Platform made of MDF with coated surface
• Important: The parking brake must be applied when not in use
• It is activated by pushing the drawbar upwards
• Side panels made of MDF with coated finish, 200 mm high, channel steel frame
• Rear and side panels are hinged and can be folded down
• Fixed front panel

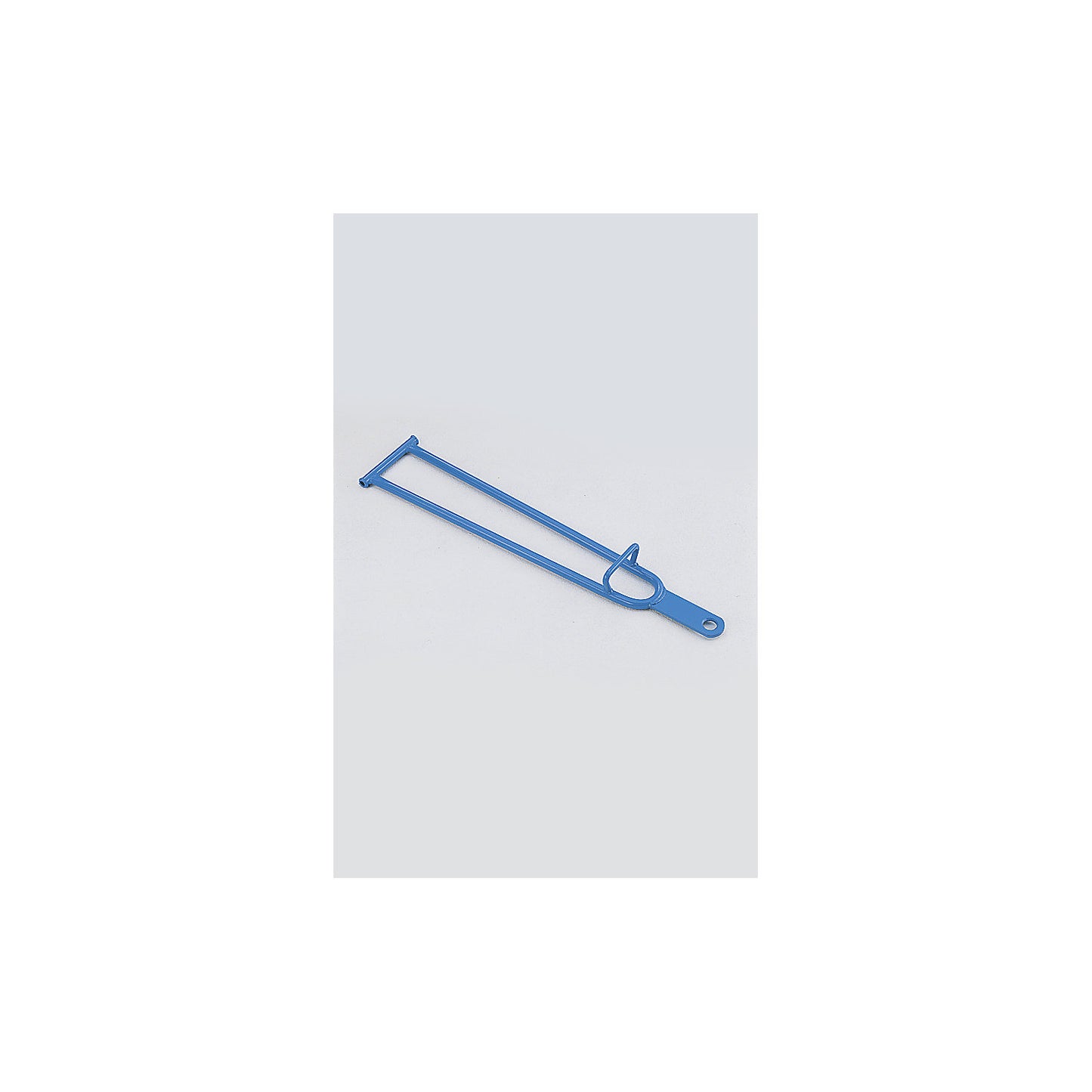

• Tubular drawbar with towing eyelet to attach to towing vehicles with speeds up to 4 km/h available upon request
• The standard hand drawbar is omitted
• Available in almost any RAL colour
• Surcharge of just 10%
• Custom colours are manufactured to individual customer specifications and are therefore excluded from the right of cancellation and return.
