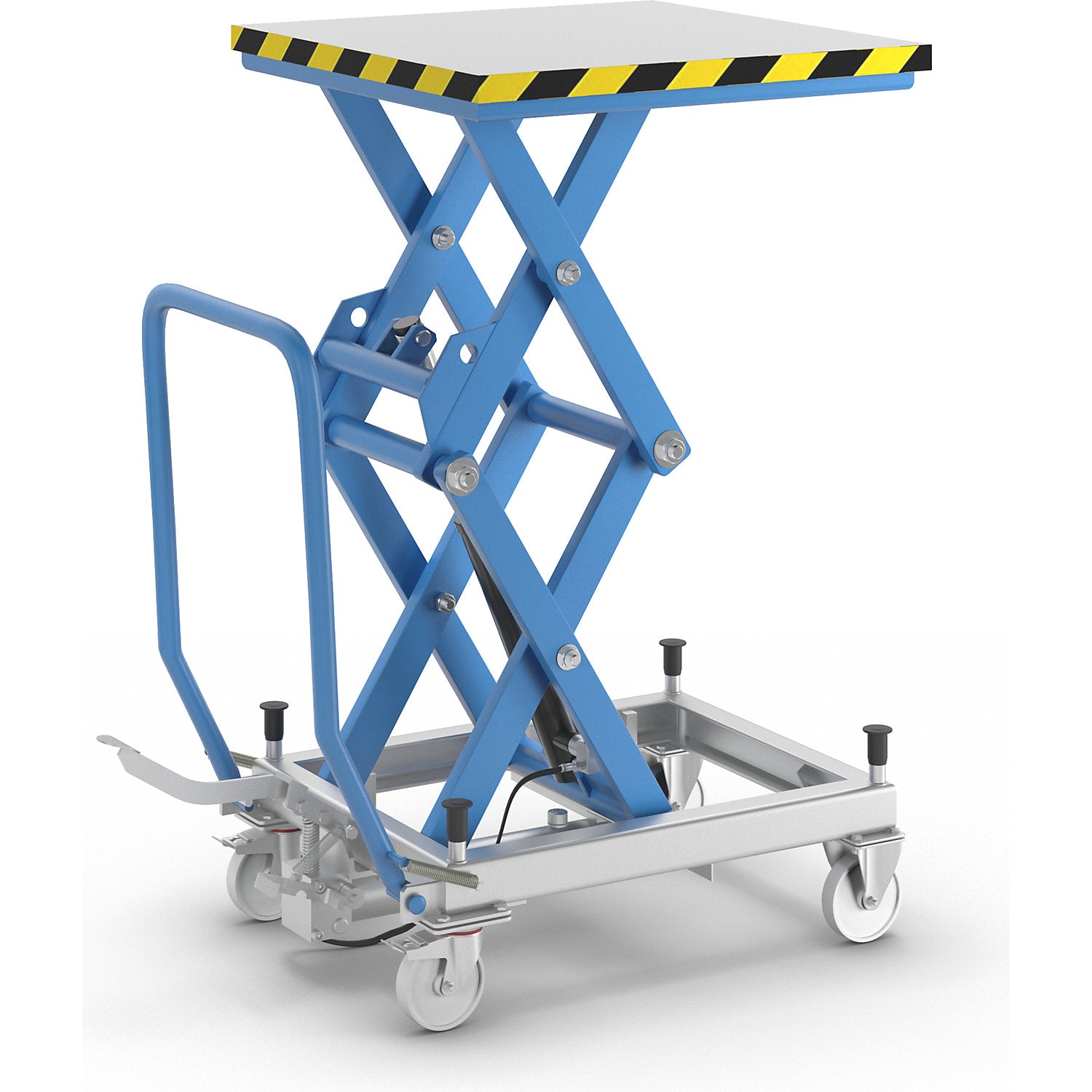

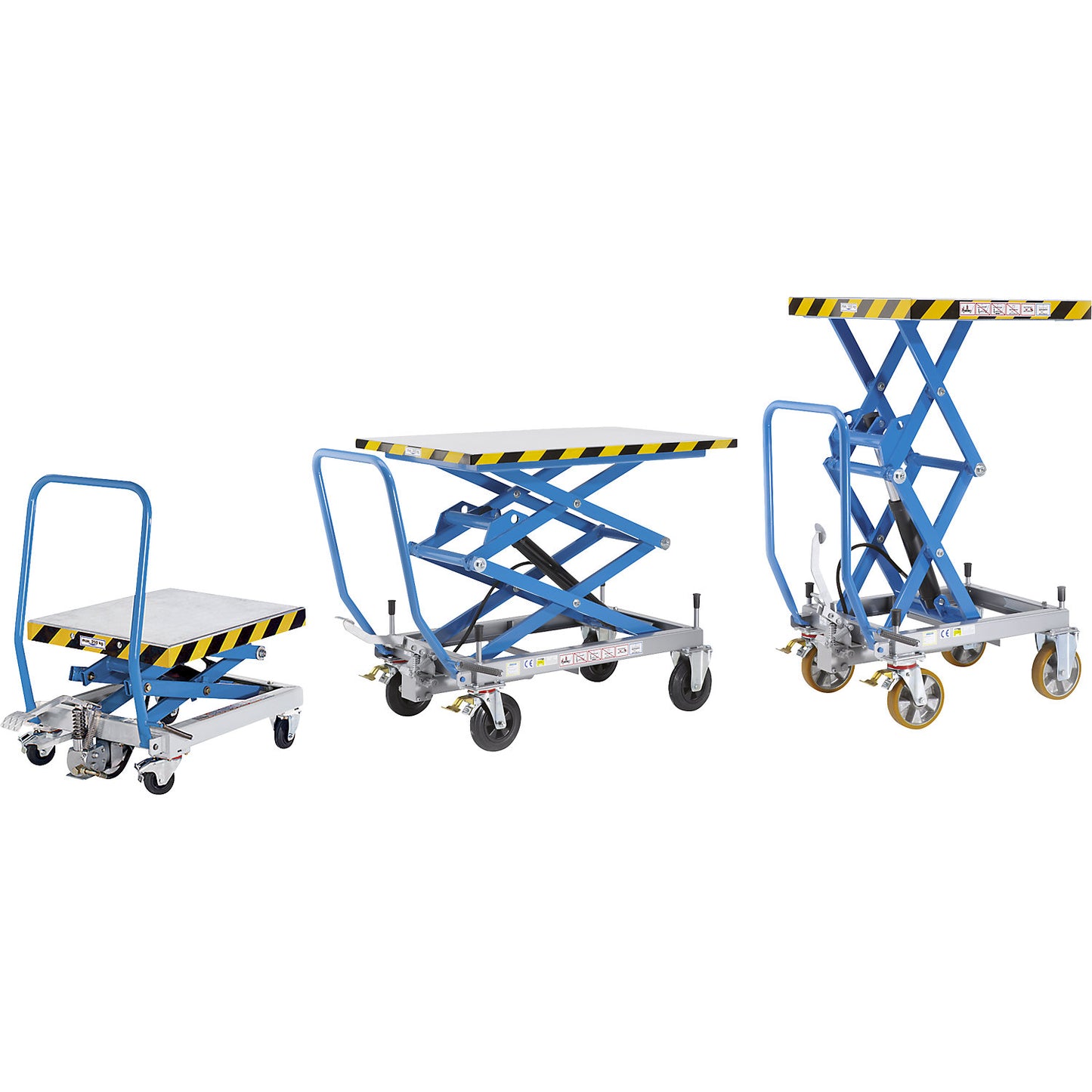

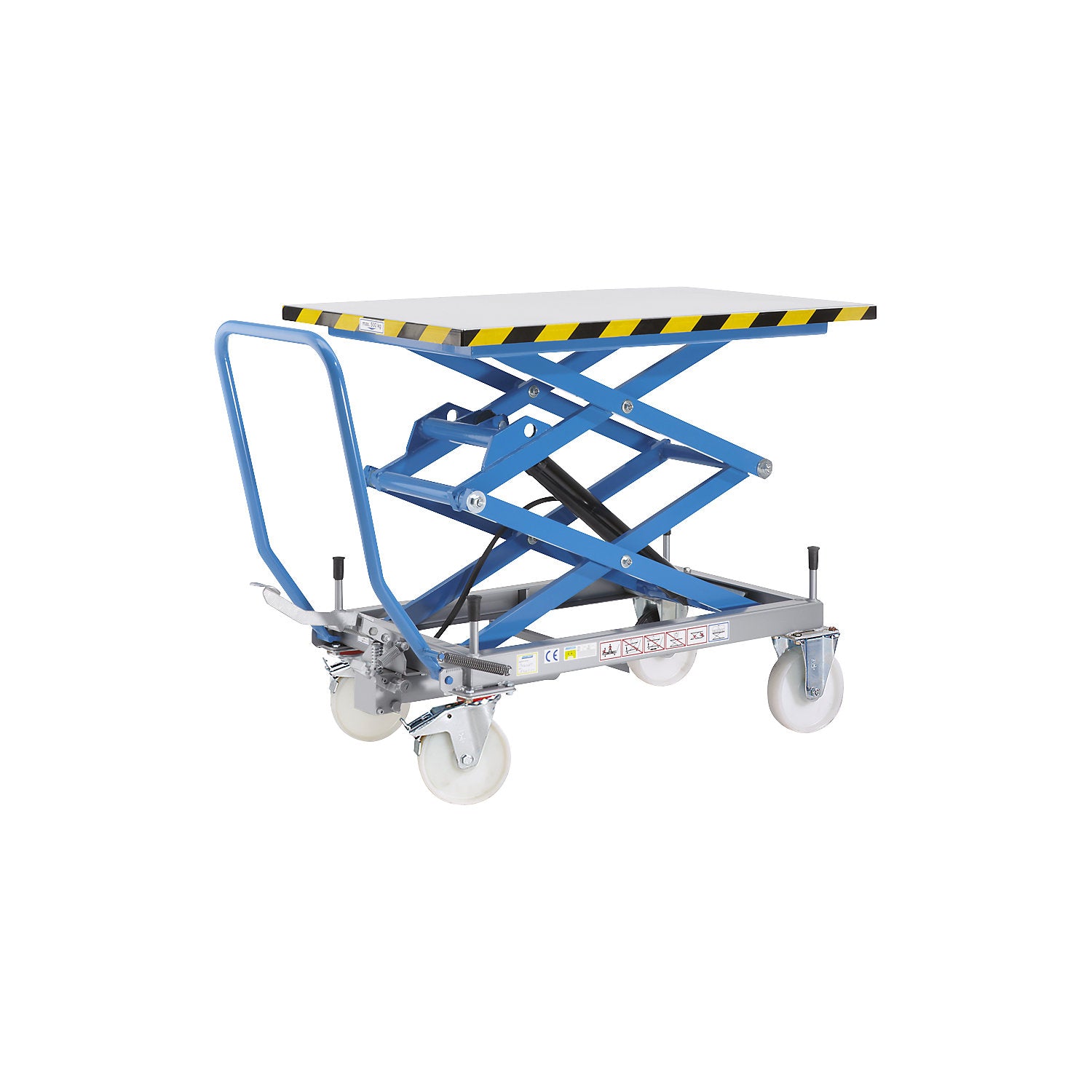

Double scissor lifting platform truck, max. load 500 kg, lifting range 380 - 1315 mm, nylon tyres.

Estimated delivery: 31 days

Double scissor lifting platform truck, max. load 500 kg, lifting range 380 - 1315 mm, nylon tyres

• Supplied = assembled
• Max. load = 500 kg
• Lifting range = 380 - 1315 mm
• Wheel material = nylon
• Feature = mobile, manual
• Platform length = 760 mm
• Platform width = 760 mm
• Length = 990 mm
• Width = 760 mm
• Platform material = steel, zinc plated
• Push handle version = bolted on
• Lift per pedal stroke = 12 mm
• Frame colour = light blue RAL 5012
• Frame material = steel, powder coated
• Lift drive = pedal hydraulics
• Wheel fittings = 2 steering wheels with double stops, 2 fixed castors
• Wheel diameter = 125 mm
• Wheel bearing = roller bearing
• Model = double scissors
• Customs tariff number = 84279000
• Country of origin = DEU
• Gross weight = 170 kg
• Weight = 150 kg
• Sustainability = CO 2 footprint calculated
• Quality products - Made in Germany
• Rust free, zinc plated platform
• Scissor lift mechanism and push handle powder coated in light blue RAL 5012, base frame in white aluminium RAL 9006. 2 swivel castors and 2 fixed castors, roller bearings
• Swivel castors with double stops
• Hydraulic cylinder with biodegradable oil
• Hydraulic pedal devices Infinite lifting and lowering with pedals
• For long term, intensive use in two-shift operation
• Drawbar not mounted on delivery - easy self-assembly.
