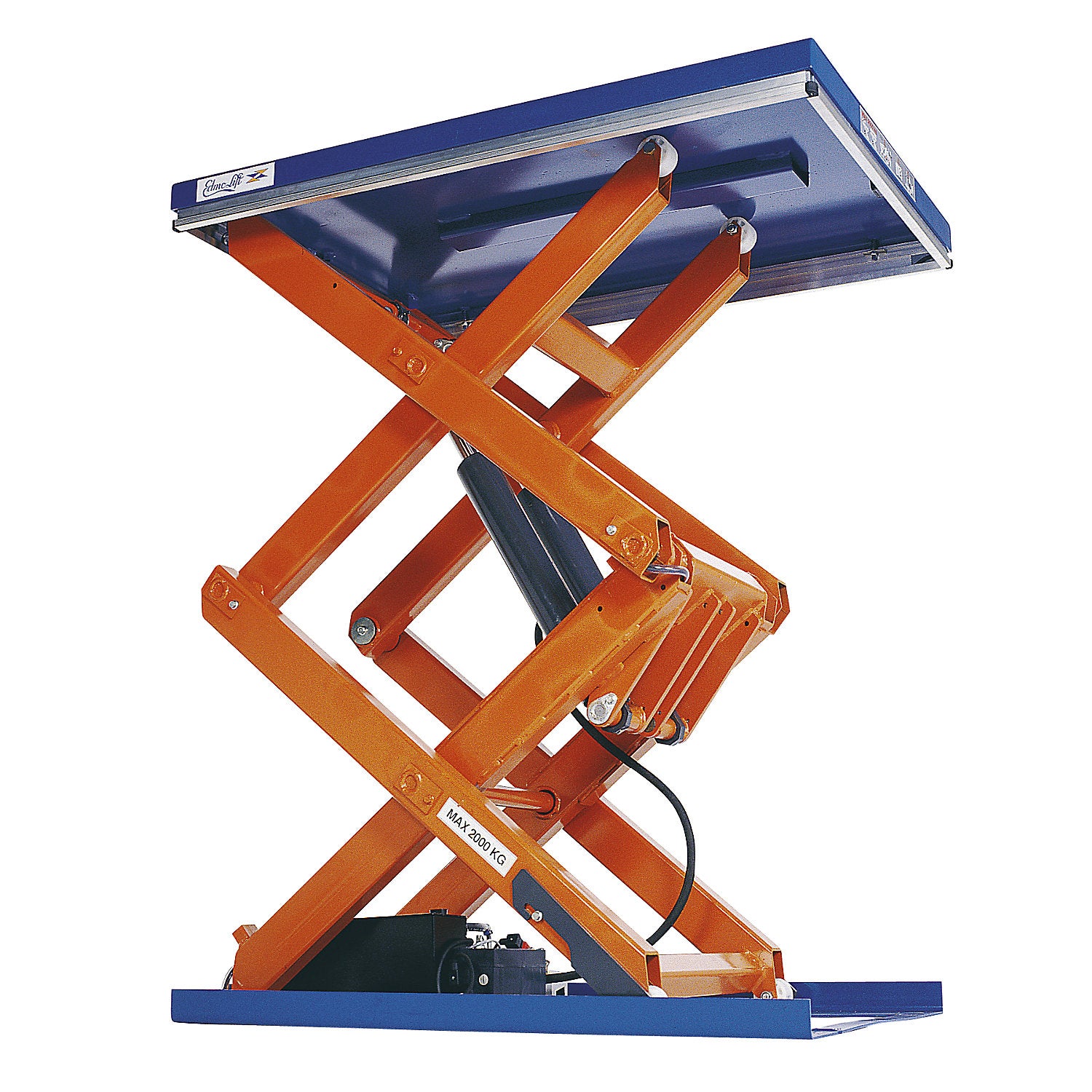

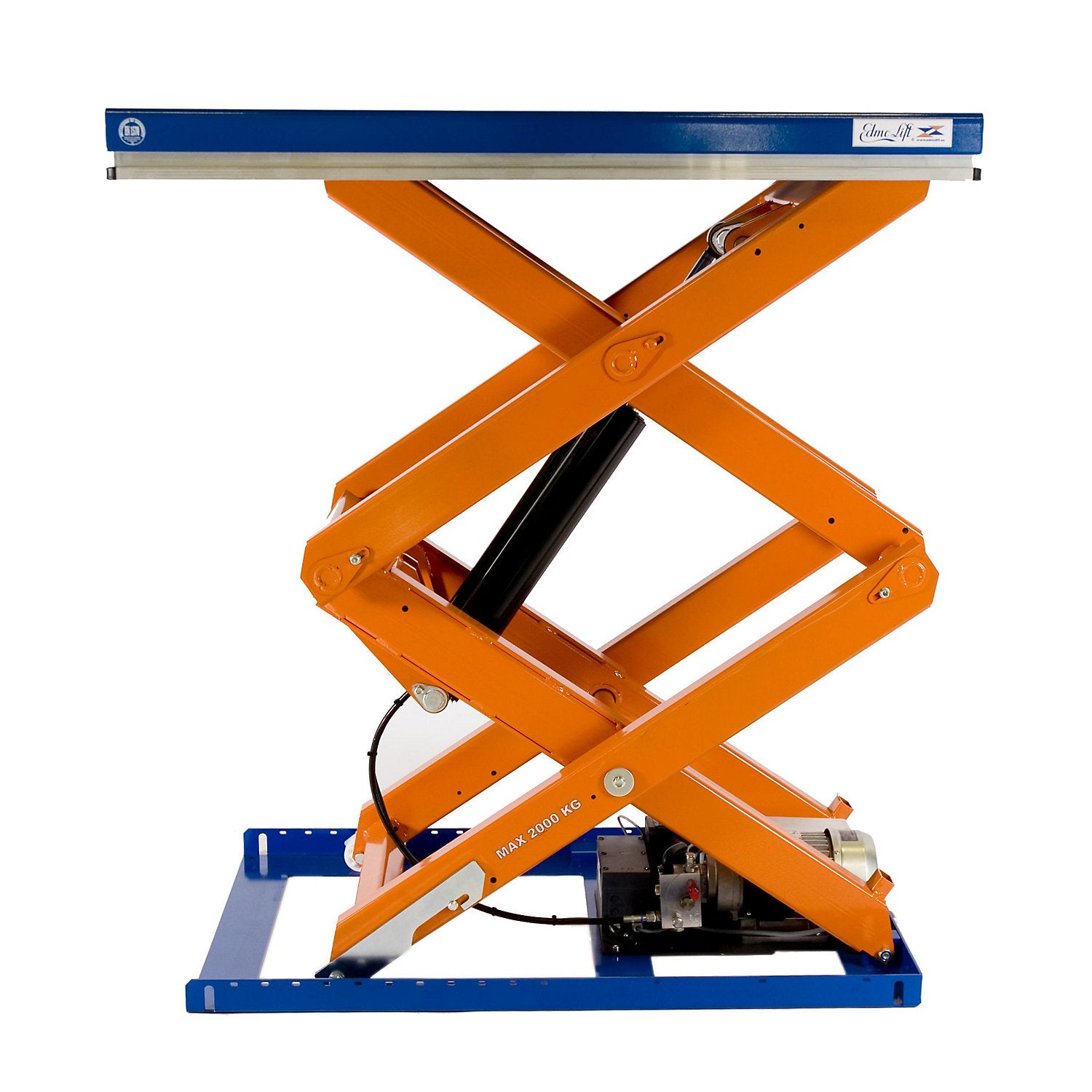

Compact lift table, max. load 2000 kg, double scissor mechanism, platform LxW 1300 x 800 mm, effective lift 1600 mm.

Estimated delivery: 71 days

Compact lift table, max. load 2000 kg, double scissor mechanism, platform LxW 1300 x 800 mm, effective lift 1600 mm

• Supplied = assembled
• Max. load = 2000 kg
• Lifting range = 360 - 1960 mm
• Platform design = closed
• Lifting time = 34 sec
• Power = 1.5 kW
• Operating voltage = 400 V 3-phase AC
• Control voltage = 24 V
• Lift drive = electro-hydraulic
• Platform colour = signal blue RAL 5005
• Platform material = steel, powder coated
• Material = steel
• Finish = powder coated
• Frame colour = signal orange RAL 2010
• Fittings = with hand operated control unit
• Lift = 1600 mm
• Lifting capacity at full load in multiple-shift operations = max. 10 cycles per hour
• Platform width = 800 mm
• Platform length = 1300 mm
• Feature = stationary, electro-hydraulic
• Customs tariff number = 84289090
• Country of origin = SWE
• Gross weight = 325 kg
• Weight = 305 kg
• Sustainability = CO 2 footprint calculated
• Manufactured in Europe
• Scissors made of stiff rectangular tubing
• Tested in multiple shift operations
• Components are laser cut and robotically welded
• Compact lift tables can be used either free standing or built-in, so that the platform is level with the ground
• The table is smoothly and quickly raised to the desired height at the touch of a button

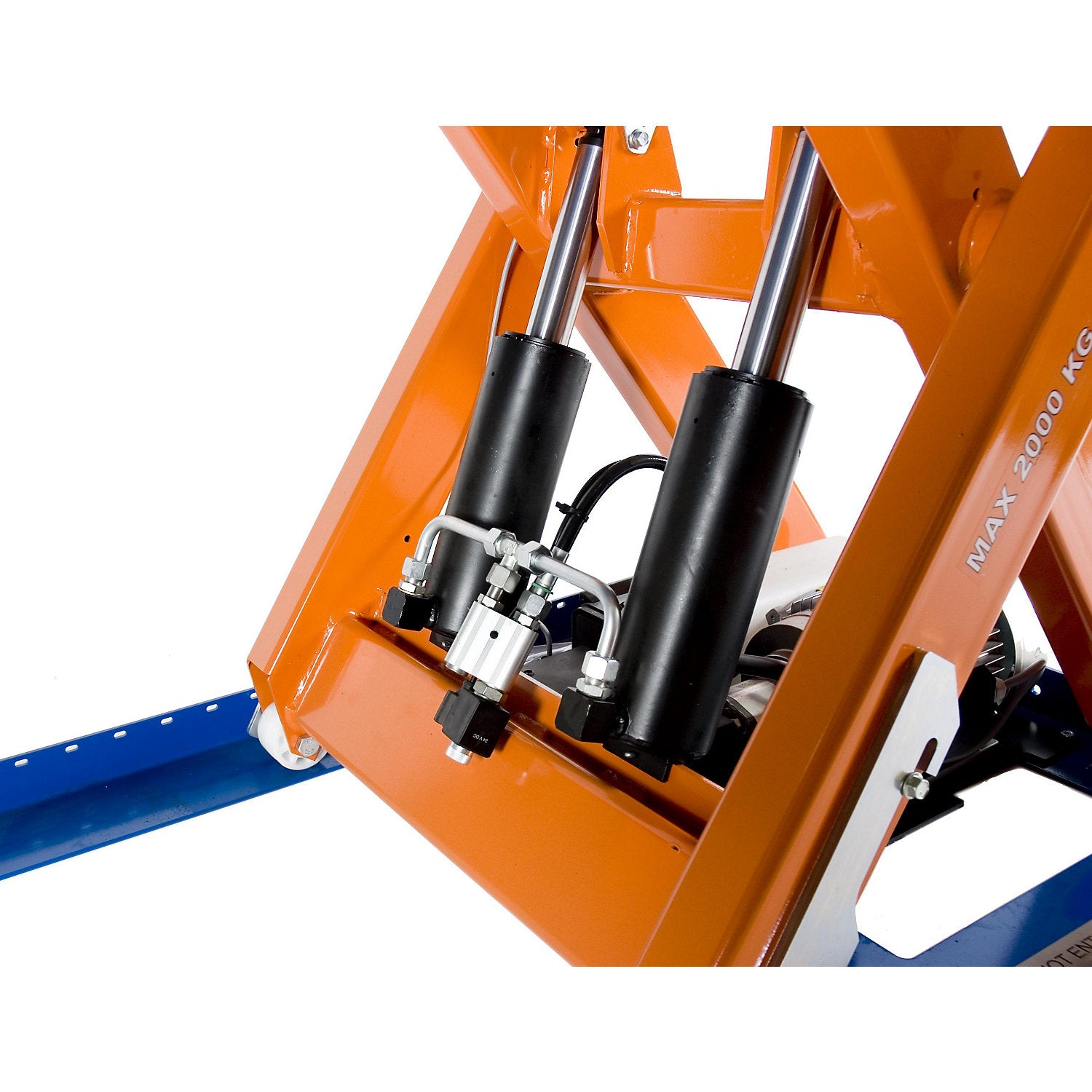

• The electro-hydraulic motor is integrated into the device
• The static compact lift tables are fitted with safety skirting and electrically controlled safety valves, making them compliant with EN 1570-1 as well as VDE requirements
• Controlled via hand switch with 3 m cable, emergency off switch
• Lifting capacity at full load: max. 10 cycles per hour in 2 shift operation (= max. 10000 cycles per year). 230 V model on request
• Accessories for static compact lift tables on request.
